X174
X174

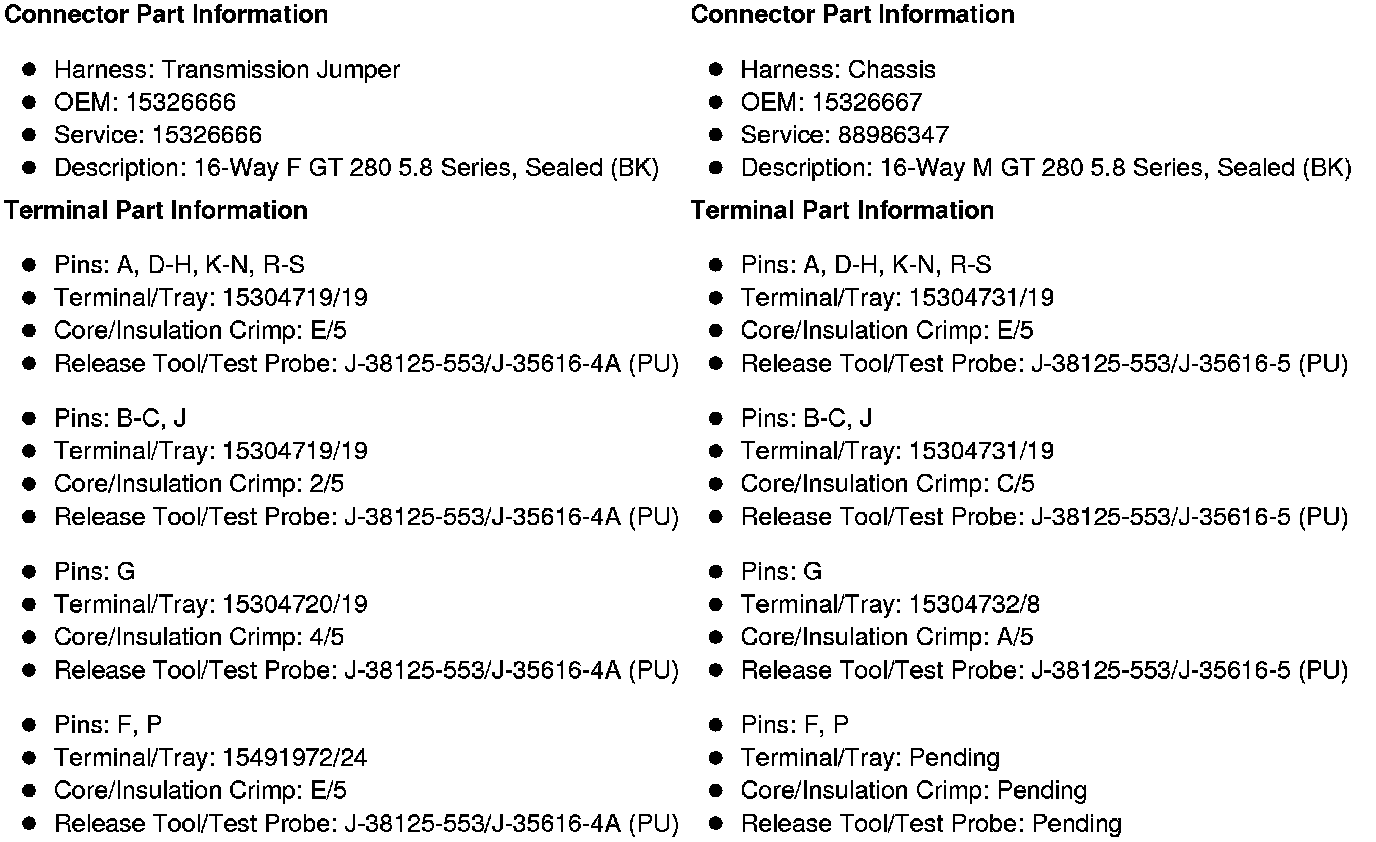

Inline Harness Connector End Views

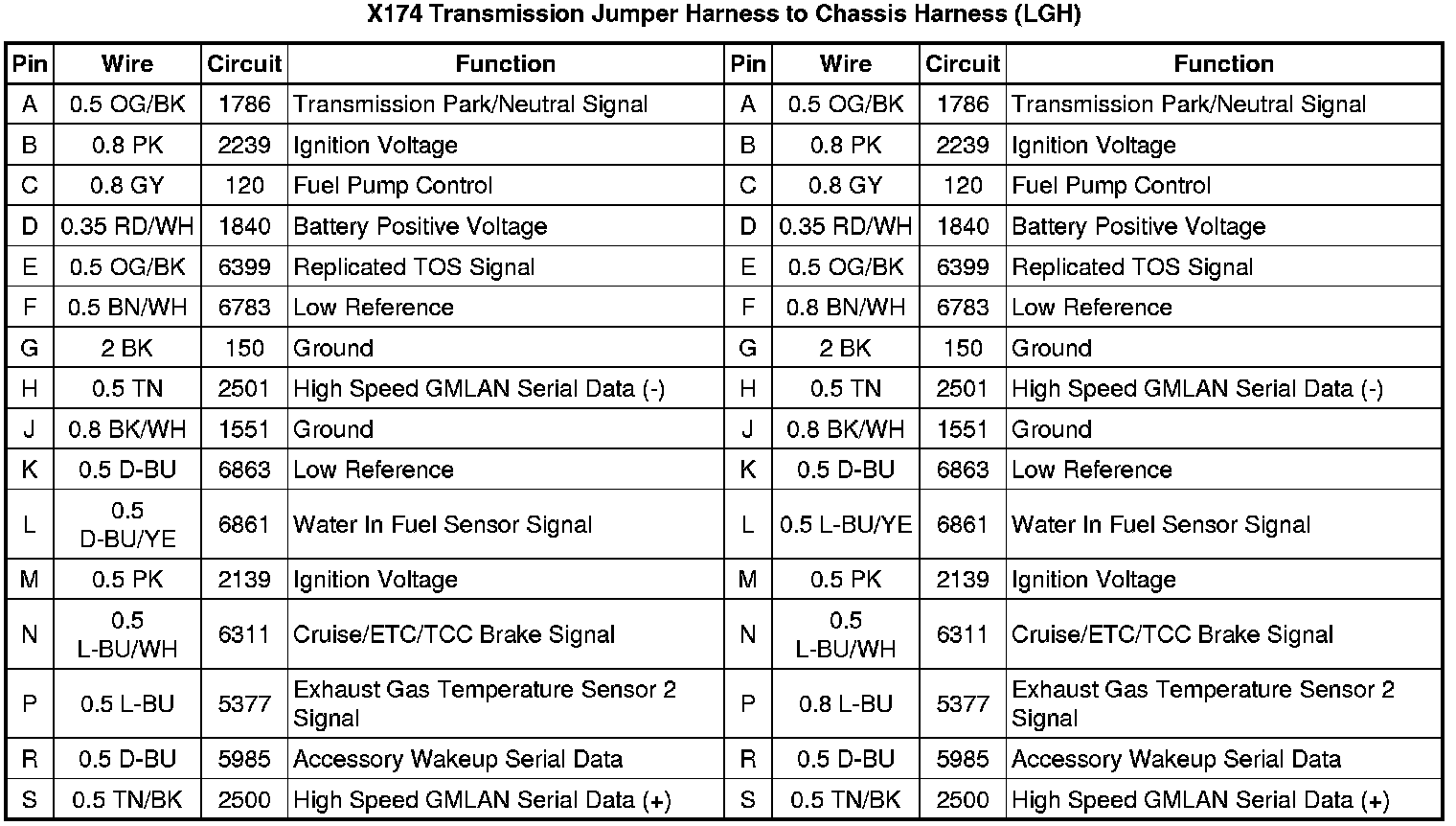

X174 Transmission Jumper Harness to Chassis Harness (LGH)
