X166
X166
Inline Harness Connector End Views

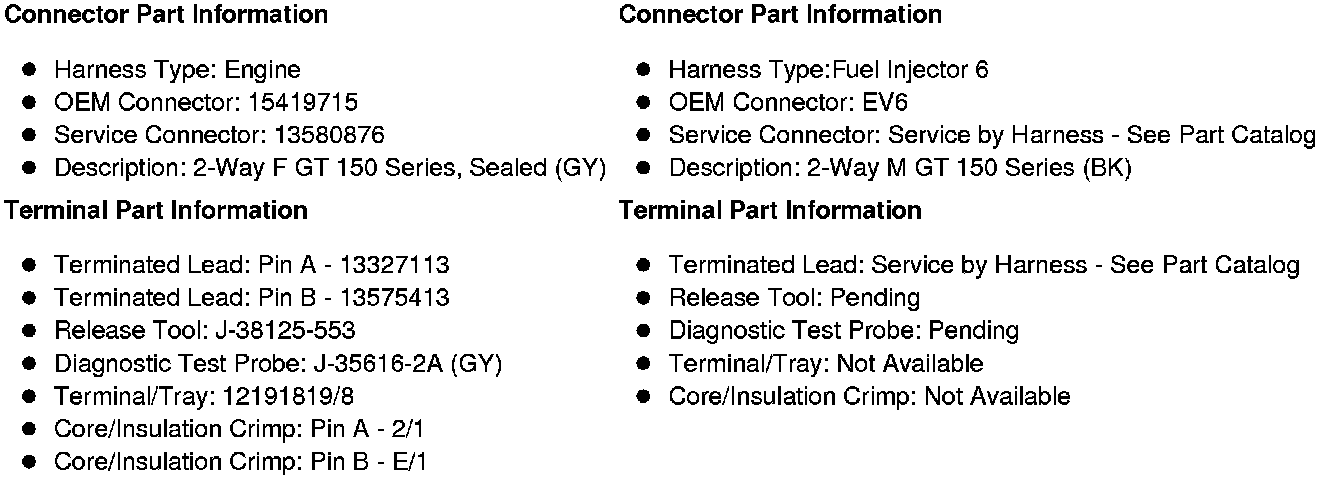

X166 Engine Harness to Fuel Injector 6 Harness (LC8 with FHZ)
