X150
X150
Inline Harness Connector End Views

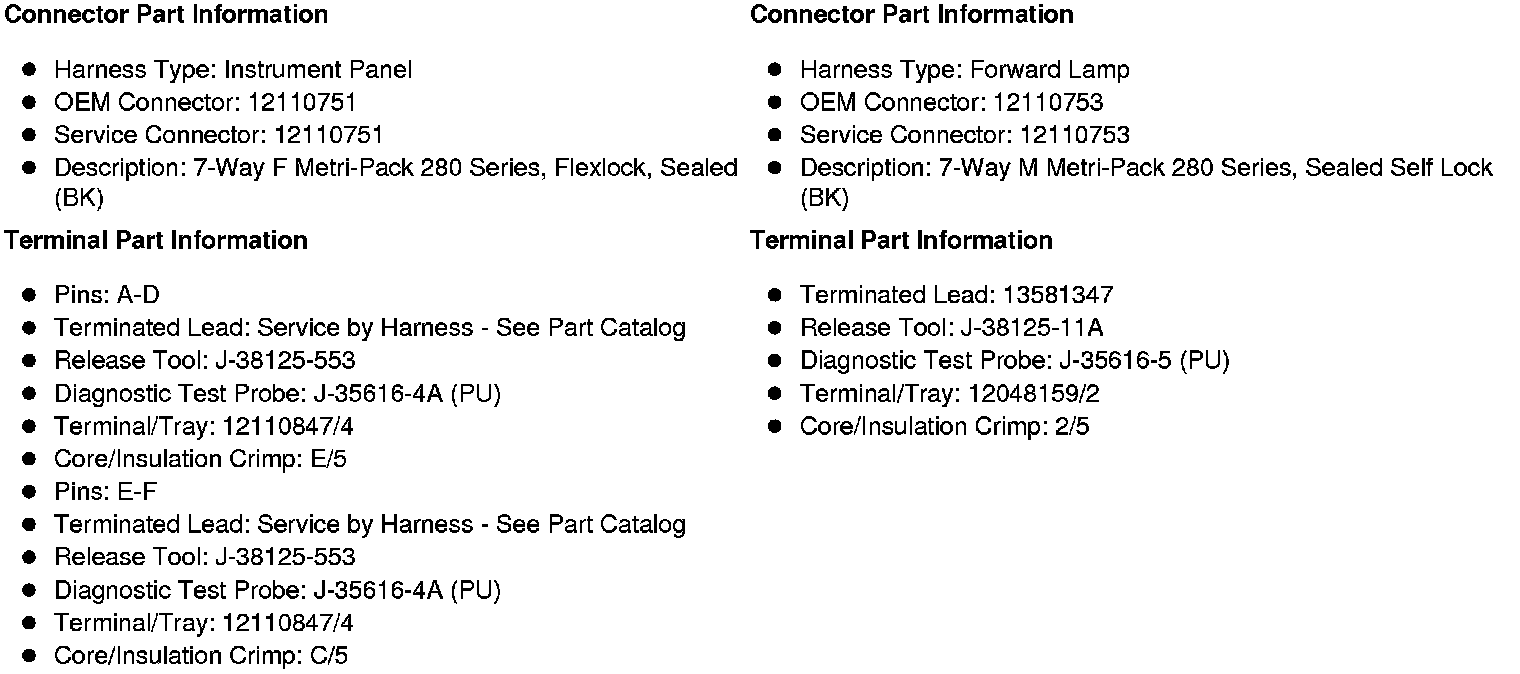

X150 Instrument Panel Harness to Forward Lamp Harness (UFA)
