Q17C Fuel Injector 3 (LUW)
 Courtesy of
|

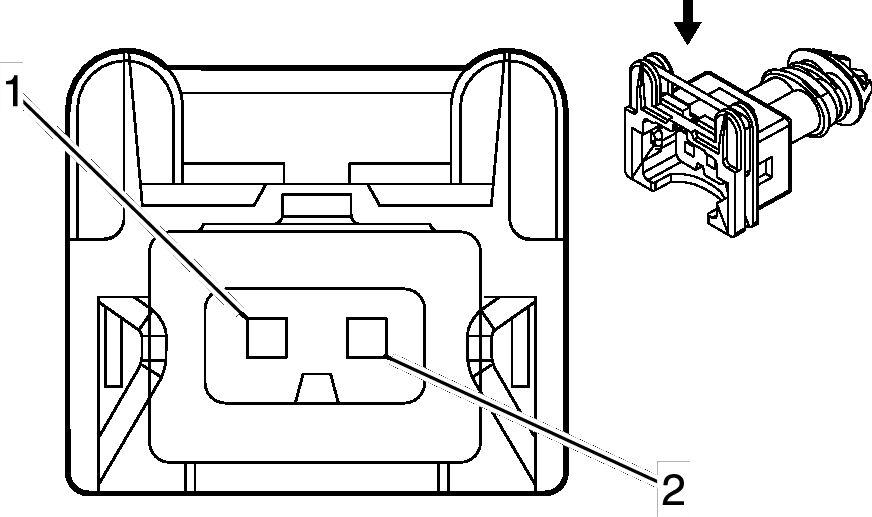

Connector Part Information
- Harness Type: Fuel Injector
- OEM Connector: 24466116
- Service Connector: 24466116
- Description: 2-Way F 2.8 Timer Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13581346
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
Q17C Fuel Injector 3 (LUW)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 PK/BK |
5291 |
Powertrain Main Relay Fused Supply (2) |
| 2 |
0.5 WH/BK |
1746 |
Fuel Injector Control (3) |
