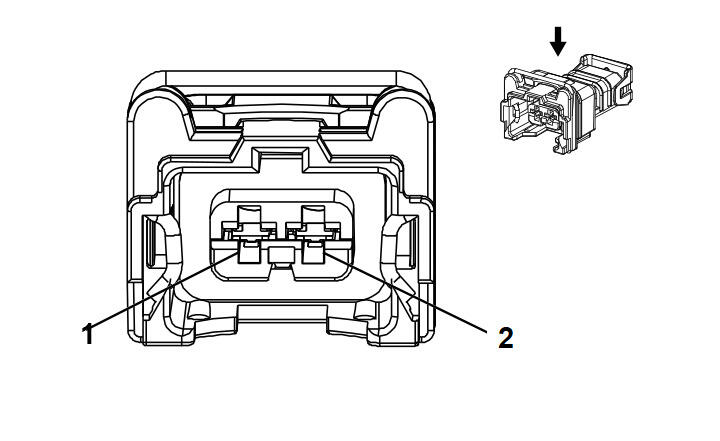

Q17A Fuel Injector 1 (LUJ)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 55565698
- Service Connector: 13577536
- Description: 2-Way F 2.8 DCS Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13327154
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
Q17A Fuel Injector 1 (LUJ)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 VT/BU |
5291 |
Powertrain Main Relay Fused Supply (2) |
| 2 |
0.5 BN/VT |
1744 |
Fuel Injector Control (1) |
