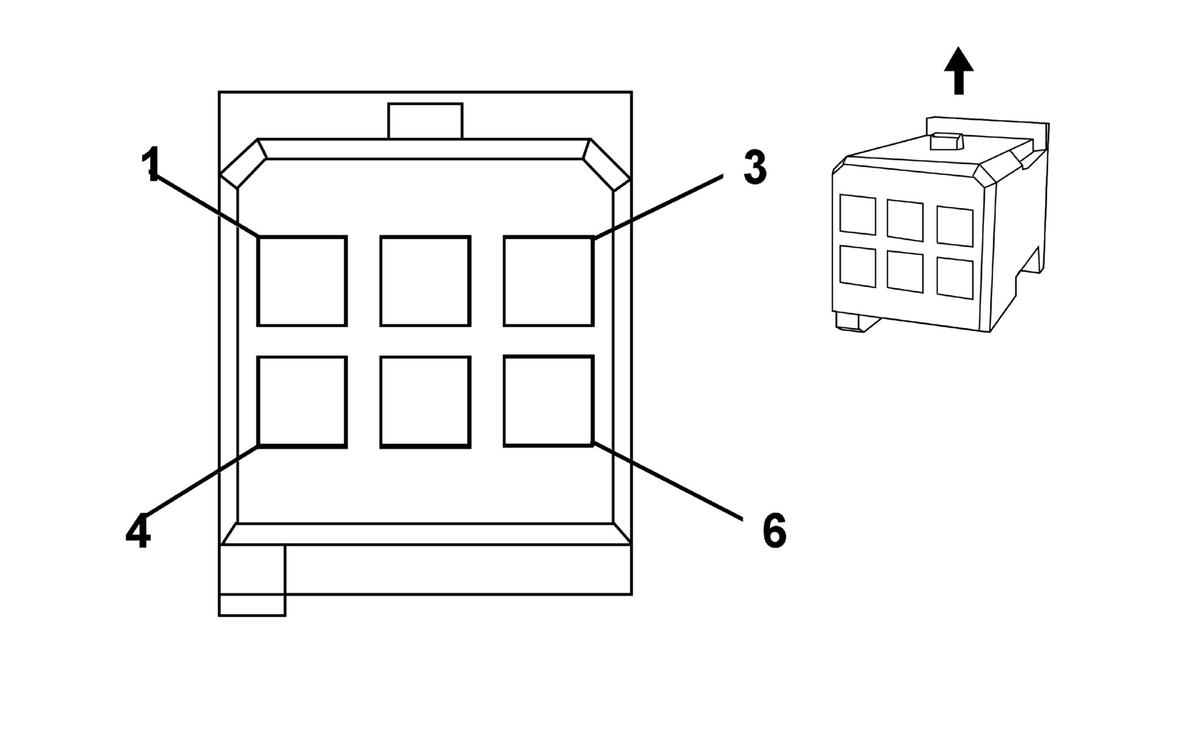

P14 Passenger Air Bag Disable Indicator
 Courtesy of
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13650066
- Service Connector: 13355765
- Description: 6-Way F MTS 0.64 Series (GY)
|
Terminal Part Information
- Terminated Lead: 13575782
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 928999-5/15
- Pins: 1, 3, 4
- Core/Insulation Crimp: J/J
- Pins: 2, 5, 6
- Core/Insulation Crimp: H/H
|
P14 Passenger Air Bag Disable Indicator
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 VT/WH |
239 |
Run/Crank Ignition 1 Voltage |
| 2 |
0.35 L-BU |
2307 |
Passenger Air Bag On Indicator Control |
| 3 |
0.5 BK |
1650 |
Ground |
| 4 |
0.5 BK |
1650 |
Ground |
| 5 |
0.35 D-GN |
2308 |
Passenger Air Bag Off Indicator Control |
| 6 |
0.35 VT/WH |
5234 |
Passenger Seat Belt Indicator |
