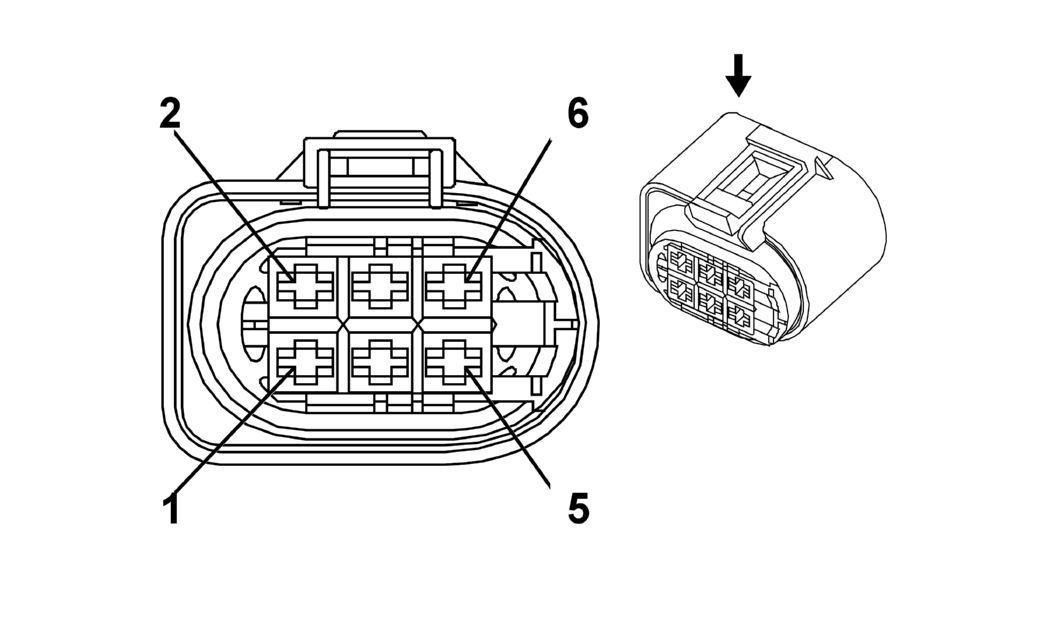

M9 Brake Booster Pump Motor
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 10846708
- Service Connector: 19258185
- Description: 6-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
- Pins: 1, 5
- Terminated Lead: Service by Connector Assembly - 19258185
- Release Tool: J-38125-556
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
- Pin: 2
- Terminated Lead: Service by Connector Assembly - 19258185
- Release Tool: J-38125-556
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 2 21 40 49206 0/27
- Core/Insulation Crimp: Not Available
|
M9 Brake Booster Pump Motor
| Pin |
Wire |
Circuit |
Function |
| 1 |
2.5 BK |
1050 |
Ground |
| 2 |
0.5 BN |
6305 |
Brake Vacuum Switch Signal |
| 3-4 |
- |
- |
Not Used |
| 5 |
2.5 RD/VT |
1940 |
Battery Positive Voltage |
| 6 |
- |
- |
Not Used |
