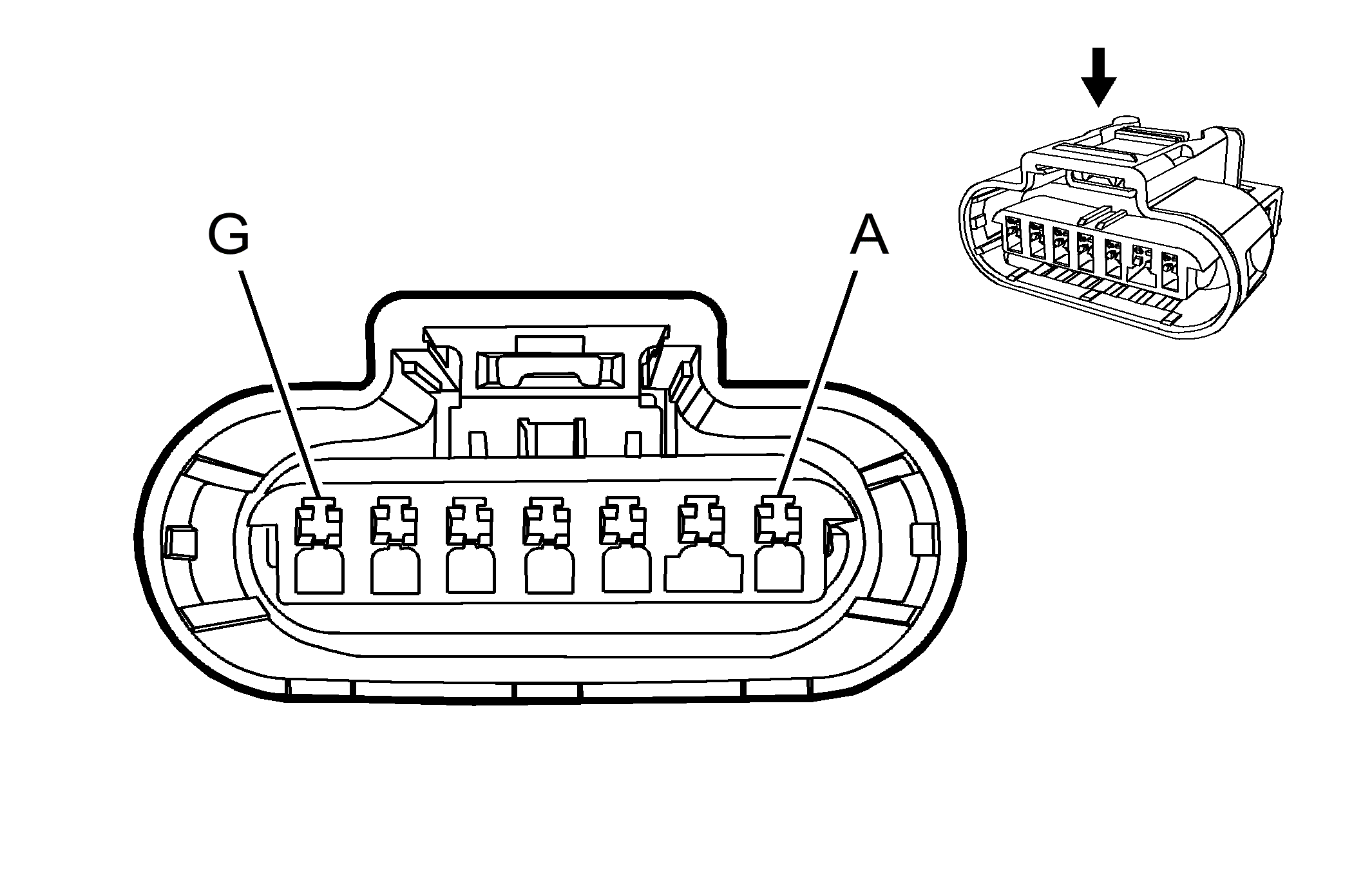

K35 Ignition Coil Module

GM2231636Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 55563971
  • Service Connector: 13355784
  • Description: 7-Way F (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13355784
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
K35 Ignition Coil Module

Pin Wire Circuit Function
A 1 VT/D-BU 5291 Powertrain Main Relay Fused Supply (1)
B 0.75 BK 250 Ground
C 0.5 BK/D-BU 2129 Low Reference
D 0.75 D-BU/VT 2121 Ignition Control (1)
E 0.75 D-BU/WH 2122 Ignition Control (2)
F 0.75 L-GN/L-BU 2123 Ignition Control (3)
G 0.75 YE/D-BU 2124 Ignition Control (4)
