A26 HVAC Controls

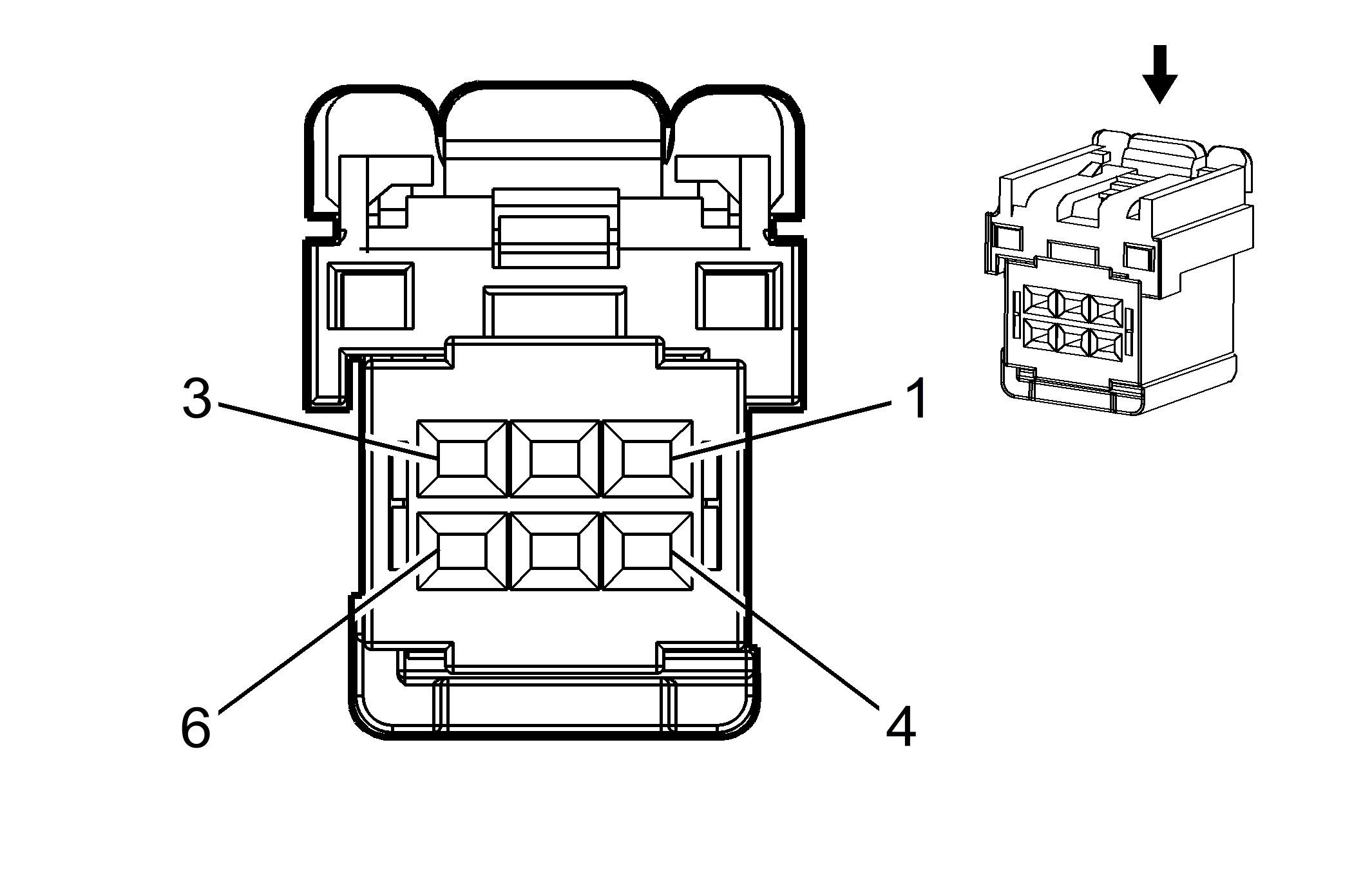

GM2173863Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 10864274
  • Service Connector: 13337944
  • Description: 6-Way F 0.64 Series (BK)
Terminal Part Information
  • Terminated Lead: 13579977
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 1393366-1/16
  • Core/Insulation Crimp: K/K
A26 HVAC Controls

Pin Wire Circuit Function
1 0.5 L-GN/YE 7531 Linear Interconnect Network Bus 9
2 0.75 BK 1650 Ground
3 0.75 RD/YE 240 Battery Positive Voltage
4-6 - - Not Used
