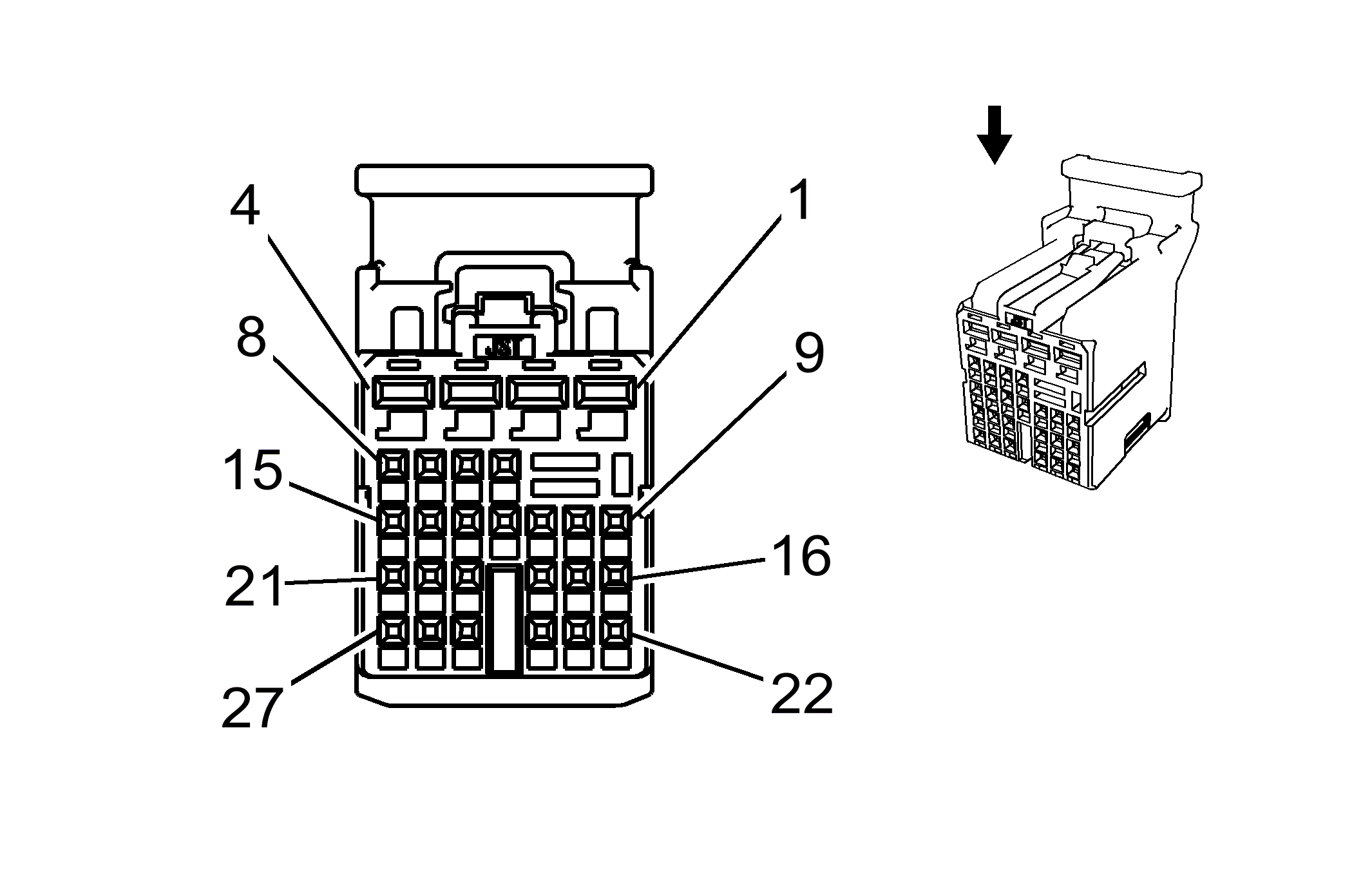

K9 Body Control Module X6
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13594134
- Service Connector: 19151267
- Description: 27-Way F 0.64 2.8 Series (PK)
|
Terminal Part Information
- Pin: 1-4
- Terminated Lead: 13575560
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: SNAC-A081T-M28/20
- Core/Insulation Crimp: A/D
- Pins: 5-27
- Terminated Lead: 13575870
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SNAC3-A021T-M064/20
- Core/Insulation Crimp: J/J
|
K9 Body Control Module X6
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.75 GY |
5911 |
Door Lock Actuator Lock Control |
| 2 |
0.75 GY/D-GN |
3271 |
Door Lock Control (2) |
| 3 |
0.5 BK |
1650 |
Ground |
| 4 |
0.75 BN/YE |
294 |
Door Lock Actuator Unlock Control |
| 5 |
0.5 VT/GY |
1303 |
Lift Gate Ajar Switch Signal (1) (without BTV) |
| 6 |
0.5 BN/D-GN |
109 |
Hood Ajar Switch Signal |
| 7-9 |
- |
- |
Not Used |
| 10 |
0.5 D-GN/YE |
6134 |
Linear Interconnect Network Bus 3 |
| 11-14 |
- |
- |
Not Used |
| 15 |
0.5 YE/D-BU |
5797 |
Rear Closure Handle Switch Open Signal |
| 16 |
0.5 D-GN/BN |
6132 |
Linear Interconnect Network Bus 1 |
| 17 |
- |
- |
Not Used |
| 18 |
0.5 D-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
| 19 |
0.5 WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
| 20-23 |
- |
- |
Not Used |
| 24 |
0.5 D-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
| 25 |
0.5 WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
| 26 |
- |
- |
Not Used |
| 27 |
0.5 GY |
747 |
Left Rear Door Ajar Switch Signal |
