F114D Knee Air Bag - Driver
 Courtesy of
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM: 13601511
- Service Connector: 19178096
- Description: 5-Way F 0.64 Series Unsealed (YE)
|
Terminal Part Information
- Terminated Lead: Service By Connector Assembly - 19178096
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

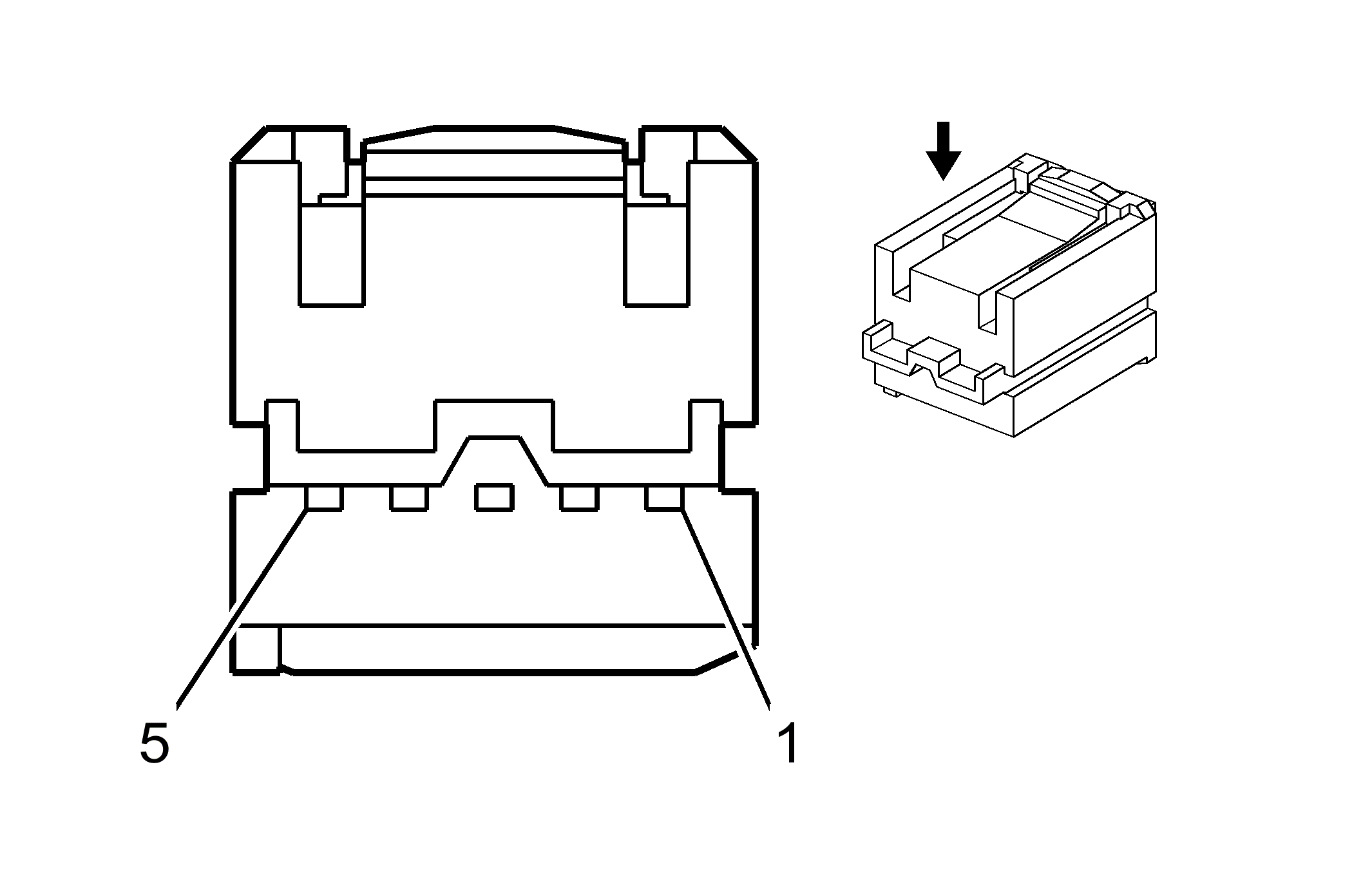

F114D Knee Air Bag - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 OG/D-BU |
3078 |
Driver Knee Module High Control |
| 2 |
0.5 GY/OG |
3079 |
Driver Knee Module Low Control |
| 3-5 |
- |
- |
Not Used |
