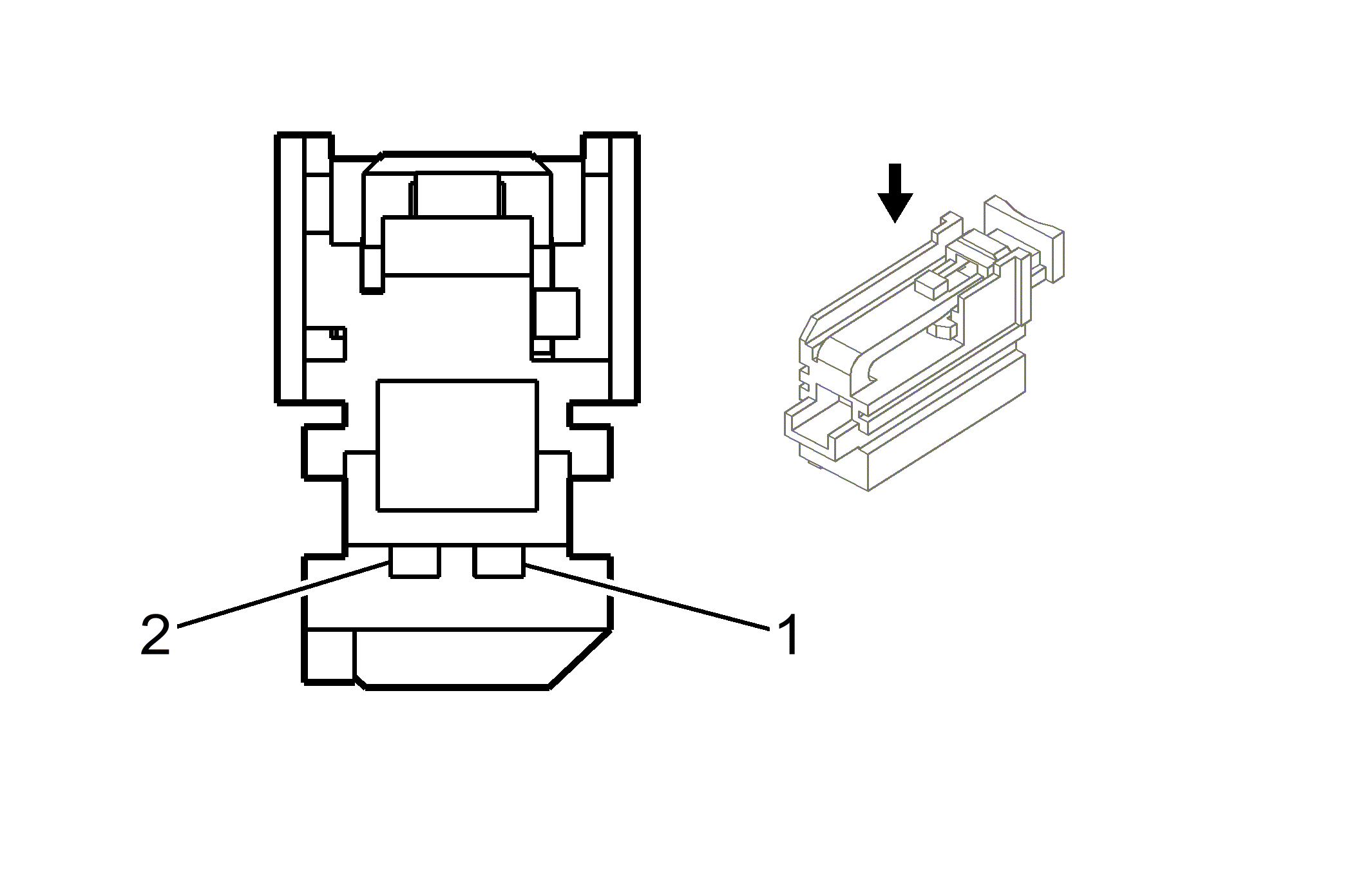

F113D Seat Belt Anchor Pretensioner - Driver
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 19153427
- Service Connector: 19208396
- Description: 2-Way F 0.64 Series Unsealed (YE)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 19208396
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
F113D Seat Belt Anchor Pretensioner - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD |
3481 |
Driver Seat Belt Pretensioner - High Control |
| 2 |
0.5 BK |
3482 |
Driver Seat Belt Pretensioner - Low Control |
