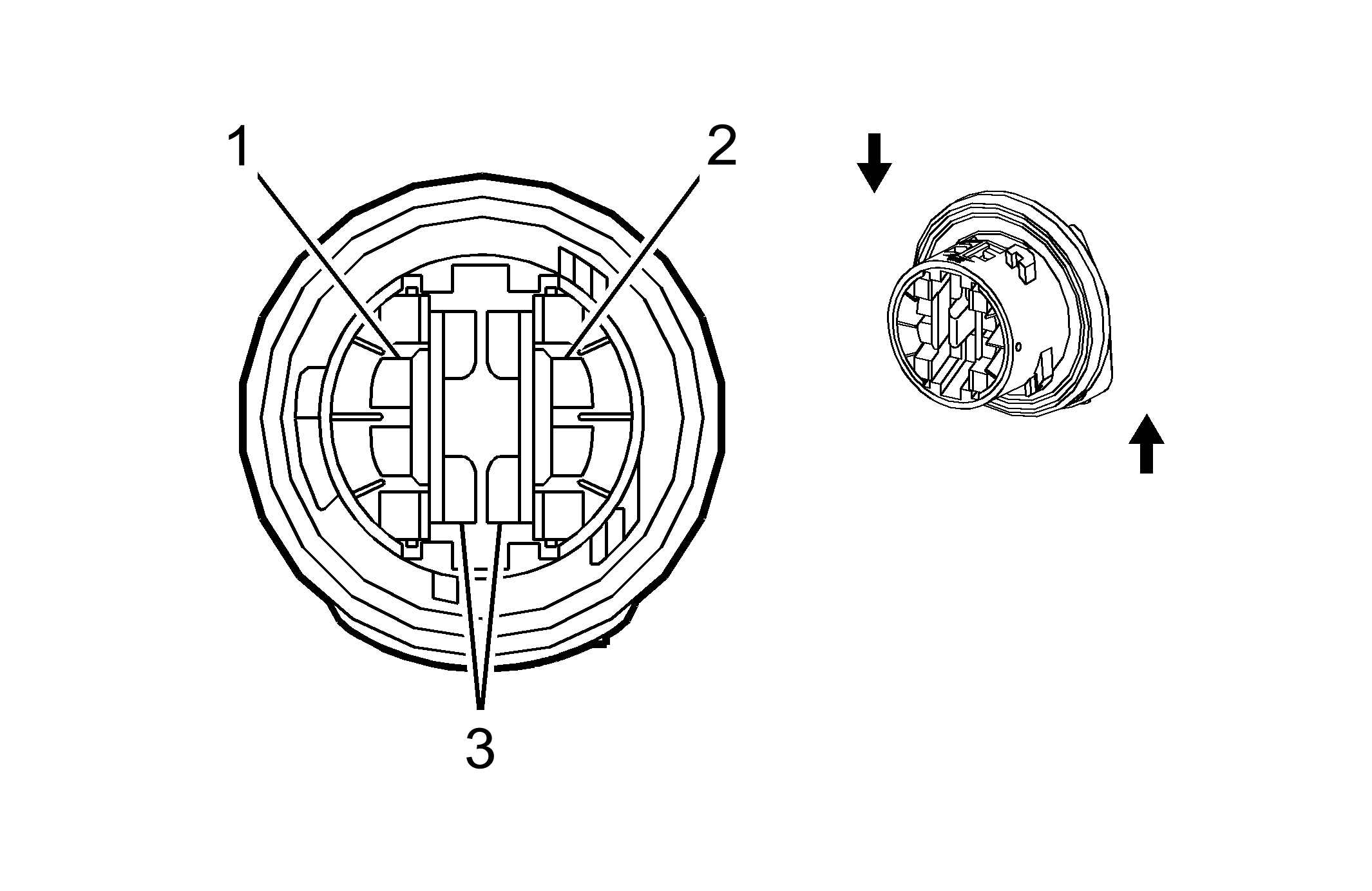

E5AA Tail/Stop Lamp - Left
 Courtesy of
|
Connector Part Information
- Harness Type: Left Tail Lamp
- OEM Connector: 3235
- Service Connector: 13355733
- Description: 3-Way F Bulb Socket, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
E5AA Tail/Stop Lamp - Left
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD |
7542 |
Left Rear Stop Lamp Supply Voltage |
| 2 |
0.5 D-BU |
709 |
Left Park Lamp Control |
| 3 |
1 BK |
2550 |
Ground |
