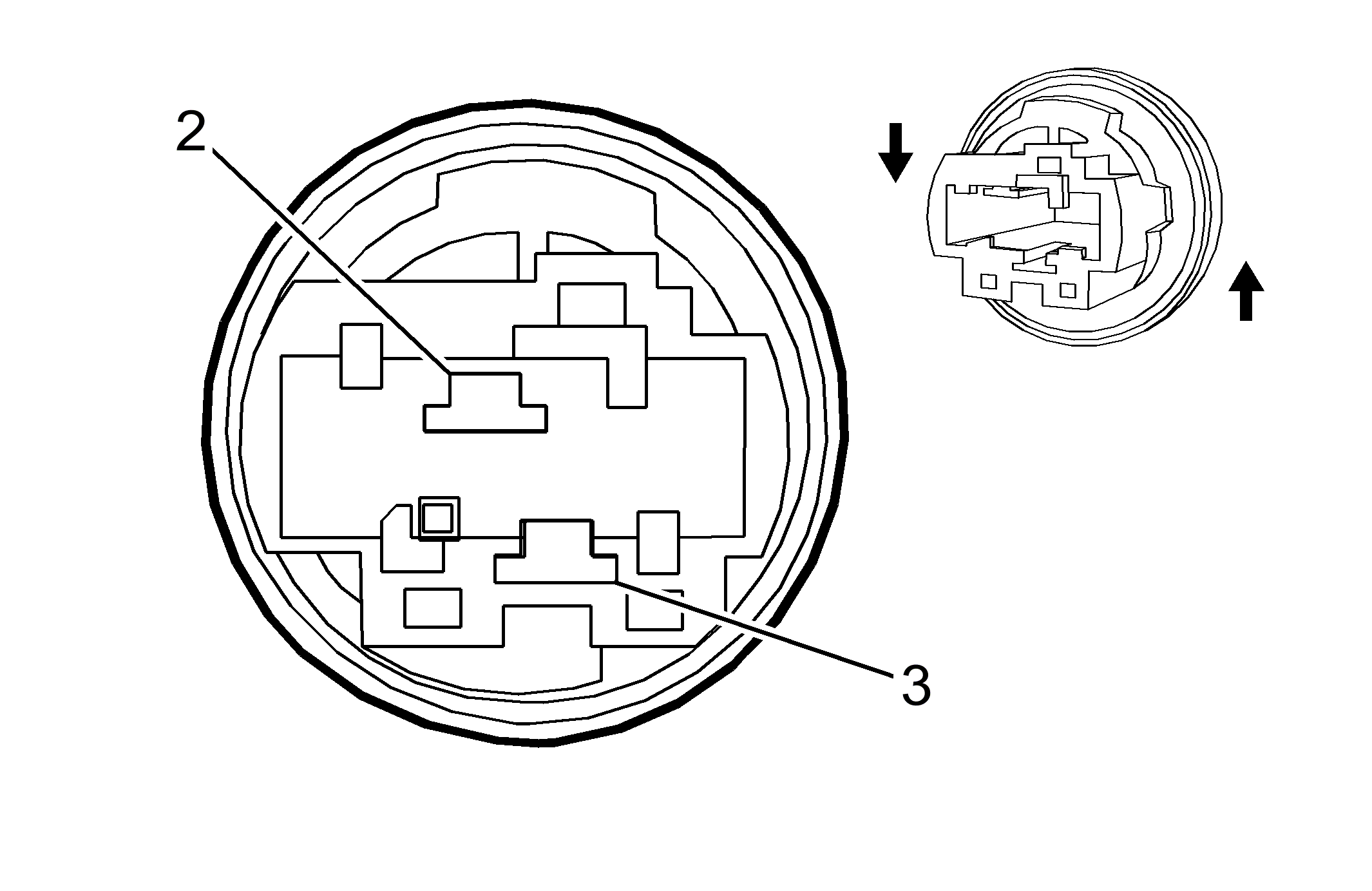

E4LR Turn Signal Lamp - Left Rear
 Courtesy of
|
Connector Part Information
- Harness Type: Left Tail Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Bulb Socket Sealed (NA)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
E4LR Turn Signal Lamp - Left Rear
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
- |
| 2 |
0.5 YE |
1334 |
Left Rear Turn Signal Lamp Control |
| 3 |
0.5 BK/WH |
2550 |
Ground |
