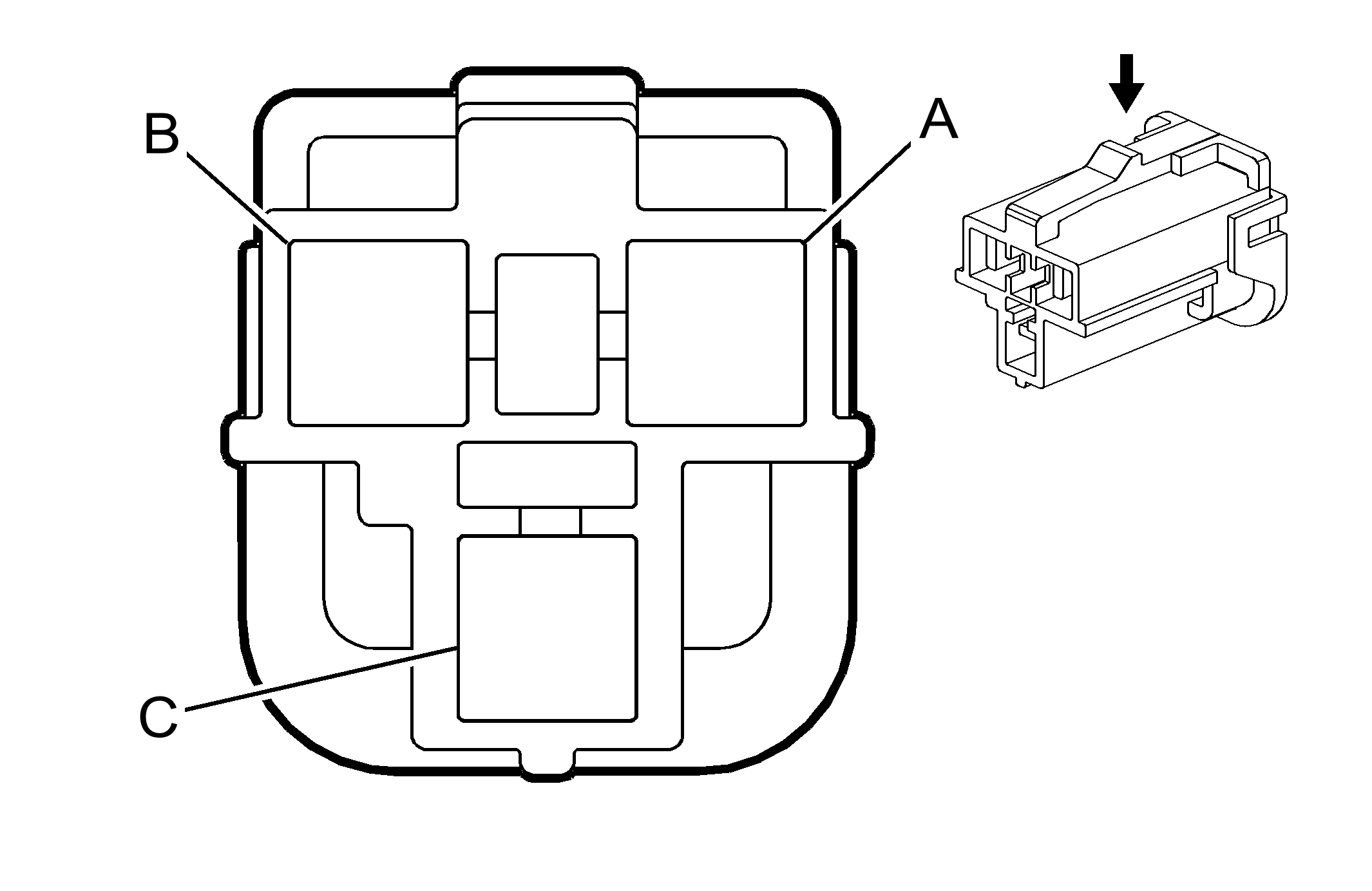

E32 Cigarette Lighter Receptacle (DT4)

GM2216903Courtesy of
Connector Part Information
  • Harness Type: Console
  • OEM Connector: 12176836
  • Service Connector: 19257374
  • Description: 3-Way F Metri-Pack 280 Series (GY)
Terminal Part Information
  • Terminated Lead: 13575721
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: C/A
E32 Cigarette Lighter Receptacle (DT4)

Pin Wire Circuit Function
A 1 VT 801 Retained Accessory Power Fuse Supply Voltage
B - - Not Used
C 1 BK 1650 Ground
