E18 Rear Defogger X1

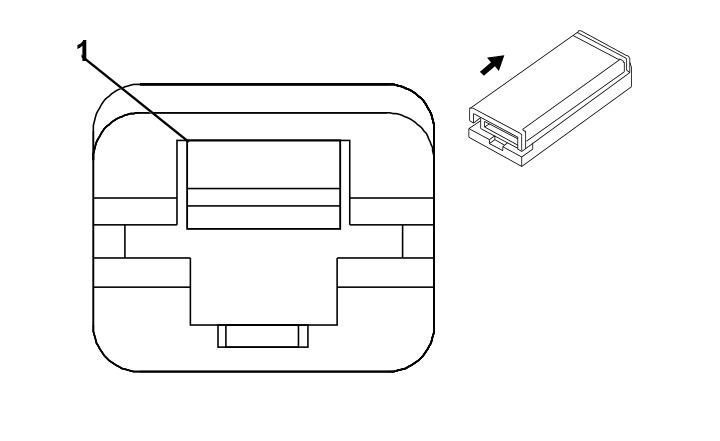

GM2220397Courtesy of
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 12131240
  • Service Connector: 13580102
  • Description: 1-Way F (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13580102
  • Release Tool: J-35616-42 (RD)
  • Diagnostic Test Probe: J-38125-12A
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
E18 Rear Defogger X1

Pin Wire Circuit Function
1 4 BN/VT 293 Rear Defog Element Supply Voltage
