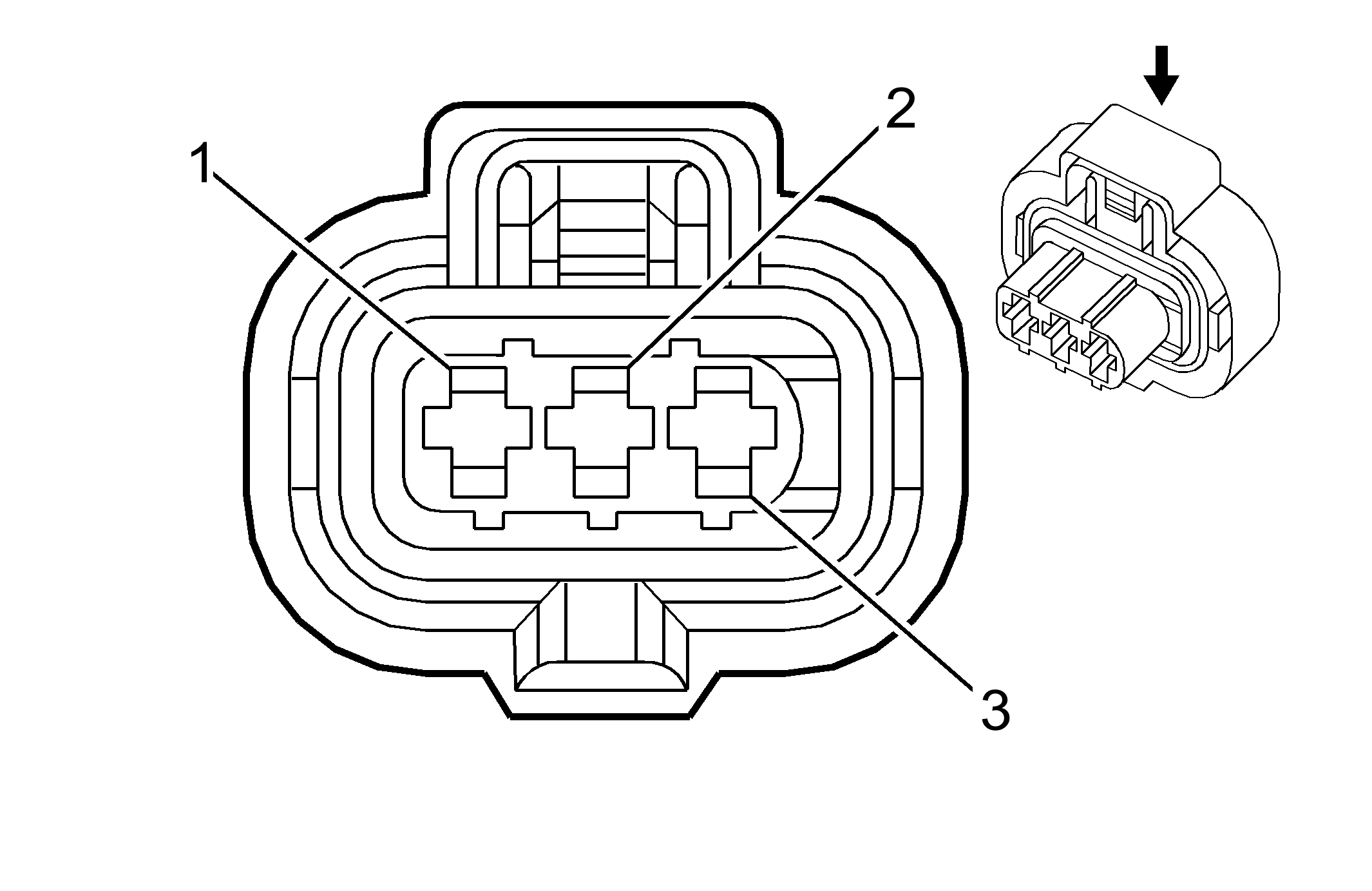

B74 Manifold Absolute Pressure Sensor (LUJ)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 55566734
- Service Connector: 13355788
- Description: 3-Way F, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13355788
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
B74 Manifold Absolute Pressure Sensor (LUJ)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BN/RD |
2704 |
5 Volt Reference |
| 2 |
0.5 BK/L-GN |
469 |
Low Reference |
| 3 |
0.5 L-GN/WH |
432 |
Manifold Absolute Pressure Sensor Signal |
