B68 Knock Sensor (LUW)

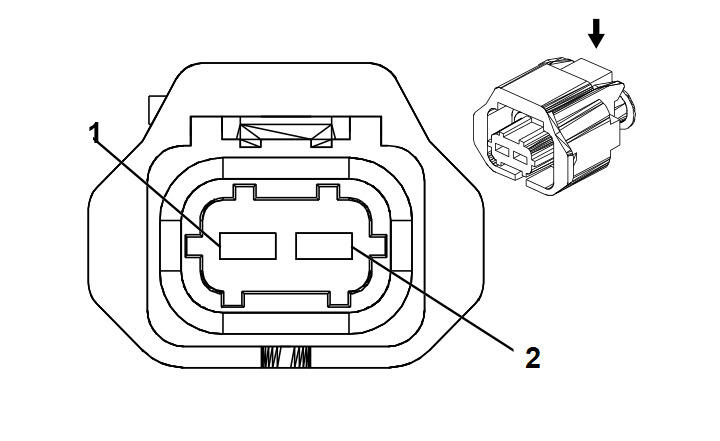

GM1855214Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13140563
  • Service Connector: 13581088
  • Description: 2-Way F 2.8 Timer Series, Sealed (NA)
Terminal Part Information
  • Terminated Lead: 13581346
  • Release Tool: J-38125-36
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 4-964286-1/16
  • Core/Insulation Crimp: E/1
B68 Knock Sensor (LUW)

Pin Wire Circuit Function
1 0.5 VT/GY 496 Knock Sensor Signal (1)
2 0.5 BK/YE 1716 Knock Sensor Signal (2)
