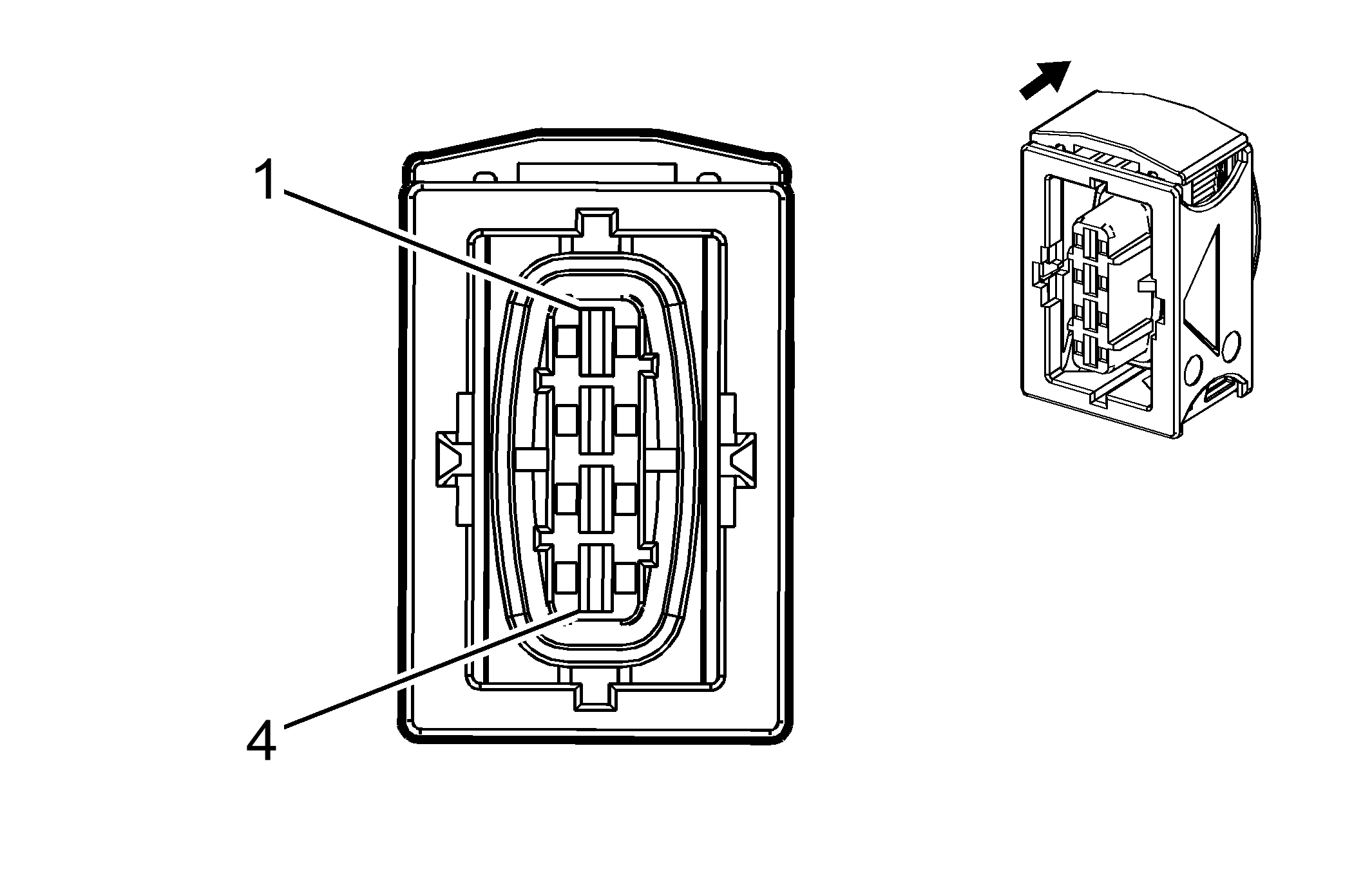

B52A Heated Oxygen Sensor 1 (LUJ)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13140566
- Service Connector: 13355749
- Description: 4-Way F 2.8 Timer Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13581346
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
B52A Heated Oxygen Sensor 1 (LUJ)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.75 RD/WH |
5293 |
Powertrain Main Relay Fused Supply (4) |
| 2 |
0.75 GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) |
| 3 |
0.5 BK/GN |
1664 |
Heated Oxygen Sensor Low Signal Bank 1 Sensor (1) |
| 4 |
0.5 GN |
1665 |
Heated Oxygen Sensor High Signal Bank 1 Sensor (1) |
