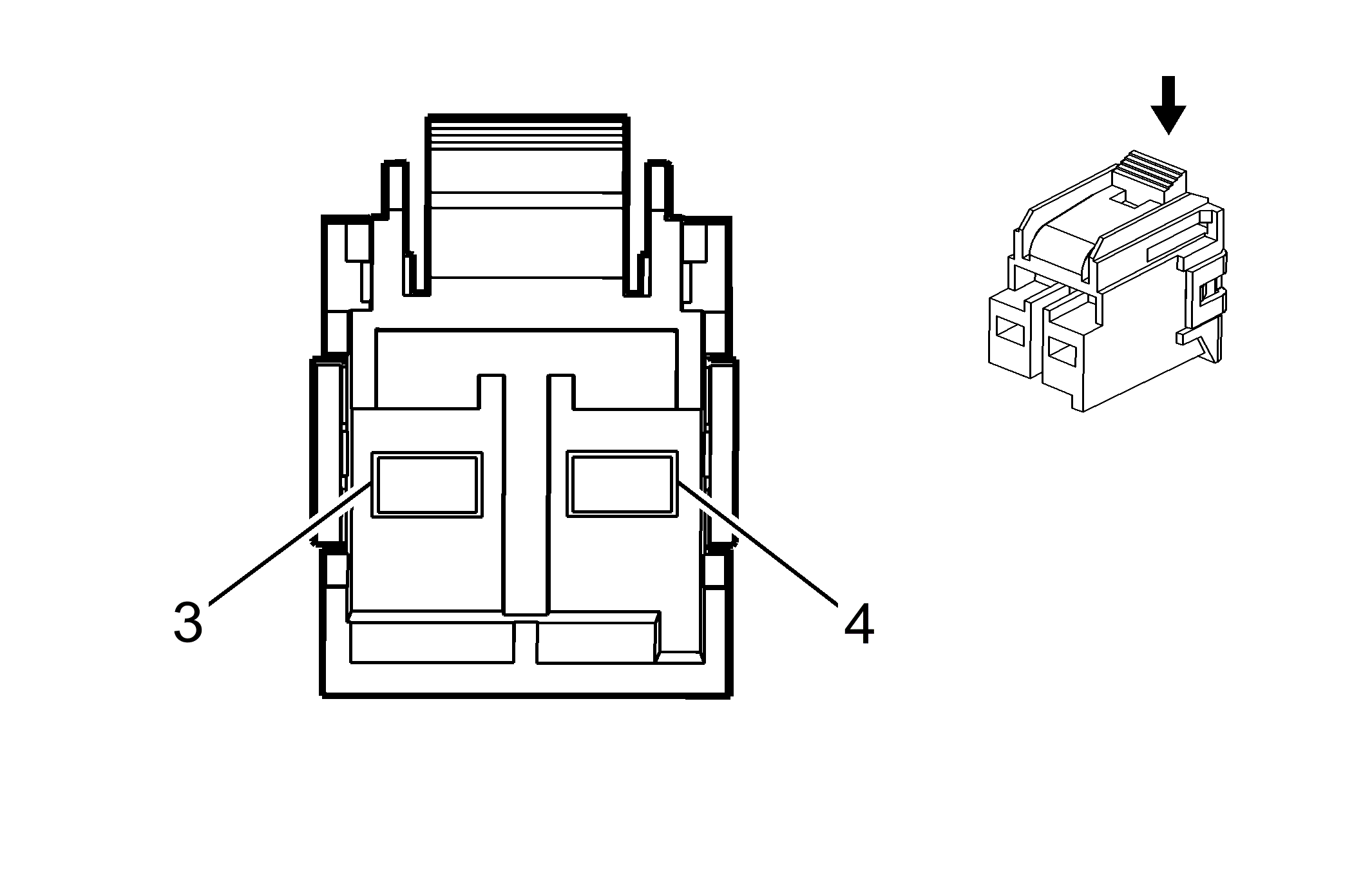

B46 Fuel Level Sensor

GM2787412Courtesy of
Connector Part Information
  • Harness Type: Fuel Level Sensor
  • OEM Connector: 88988991
  • Service Connector: Service by Component - See Part Catalog
  • Description: 2-Way F Metri-Pack 280 Series (GY)
Terminal Part Information
  • Terminated Lead: Not Available
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
B46 Fuel Level Sensor

Pin Wire Circuit Function
3 - 6281 Fuel Level Sensor Low Reference
4 - 1589 Primary Fuel Level Sensor Signal
