B37 Engine Oil Pressure Switch

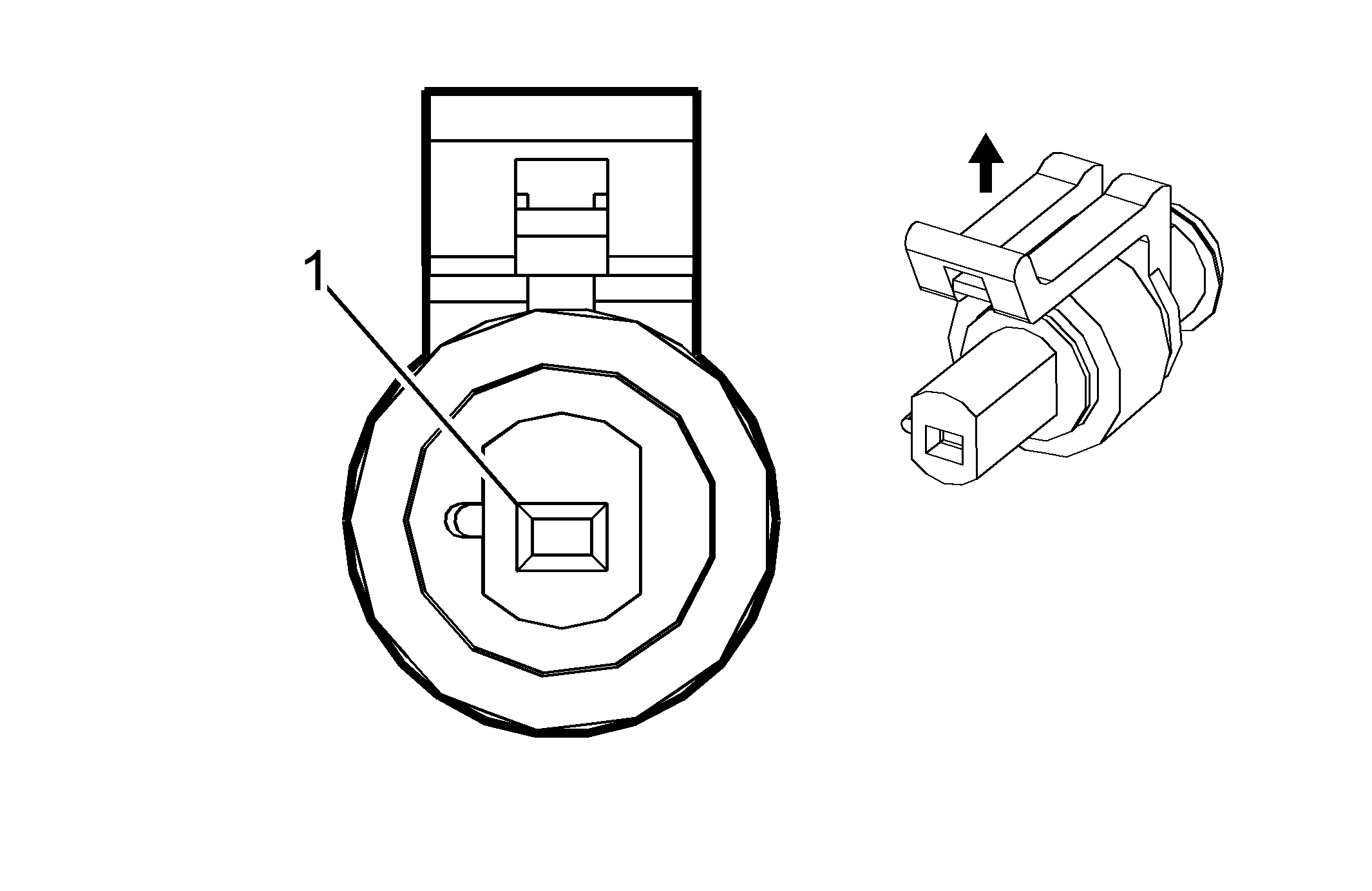

GM2231592Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 55566738
  • Service Connector: 13355789
  • Description: 1-Way F DCS2 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575400
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
B37 Engine Oil Pressure Switch

Pin Wire Circuit Function
1 0.5 YE/BU 231 Oil Pressure Switch Signal
