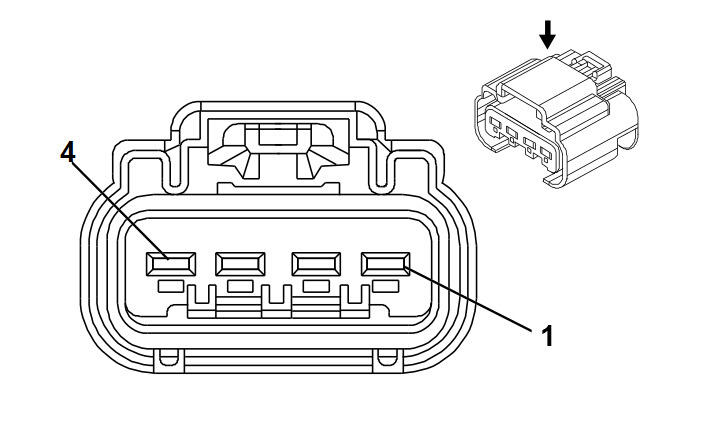

A7 Fuel Pump and Level Sensor Assembly
 Courtesy of
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 88988992
- Service Connector: 13585475
- Description: 4-Way F GT 280 Series, Sealed (NA)
|
Terminal Part Information
- Pins: 1, 2
- Terminated Lead: 13575392
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304720/19
- Core/Insulation Crimp: 4/5
- Pins: 3, 4
- Terminated Lead: 13576356
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304719/19
- Core/Insulation Crimp: E/5
|
A7 Fuel Pump and Level Sensor Assembly
| Pin |
Wire |
Circuit |
Function |
| 1 |
2.5 GY |
120 |
Fuel Pump Control |
| 2 |
2.5 BK/D-GN |
1580 |
Low Reference |
| 3 |
0.5 BK/D-GN |
6281 |
Fuel Level Sensor Low Reference |
| 4 |
0.5 D-BU/VT |
1589 |
Primary Fuel Level Sensor Signal |
