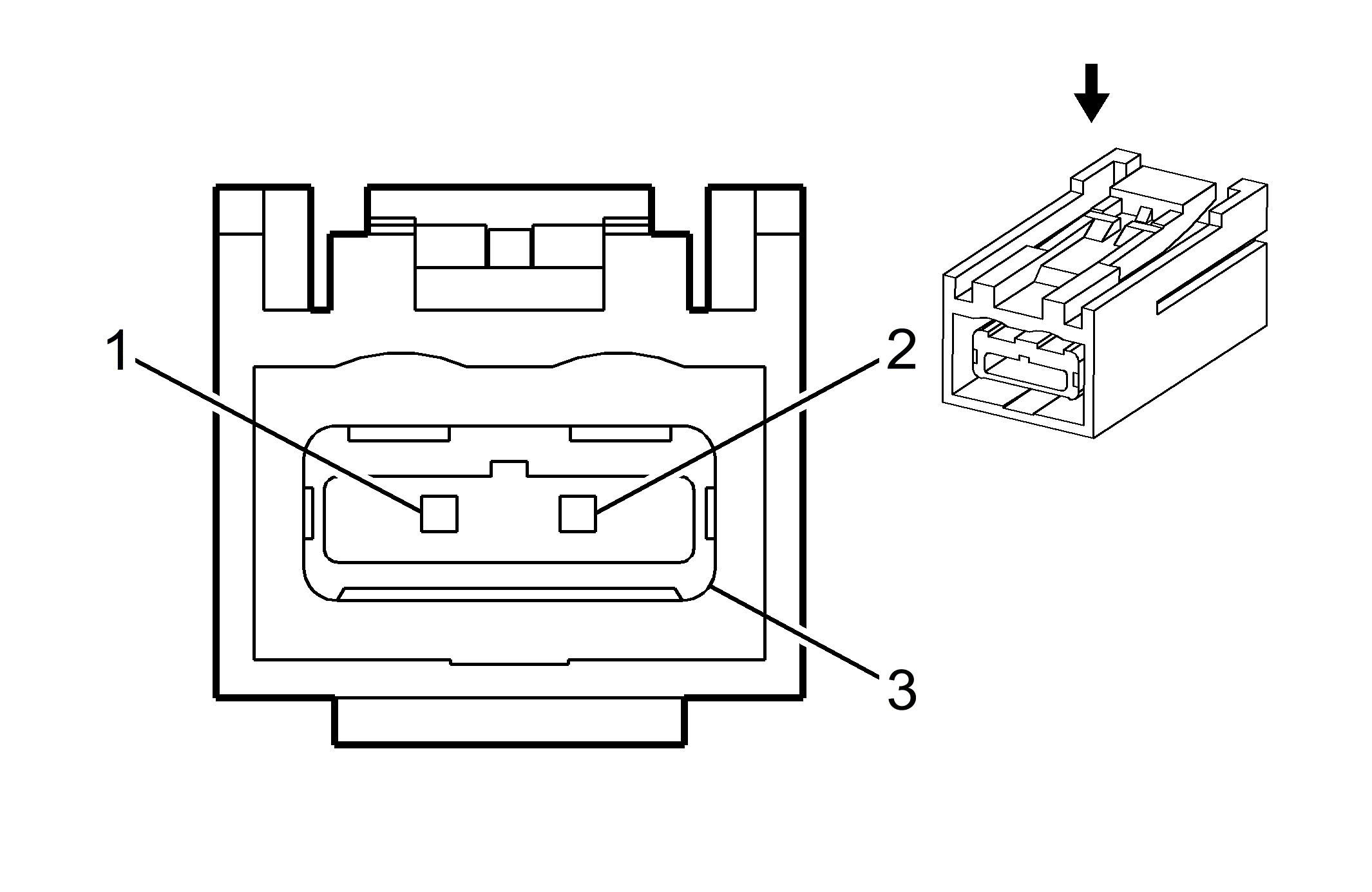

A11 Radio X3 (UEW)

GM1974985Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel TWINAX
  • OEM Connector: 13649293
  • Service Connector: Service by Cable Assembly - See Parts Catalog
  • Description: 3-Way F Sealed (L-BU)
 Terminal Part Information
  • Terminated Lead: Service by Cable Assembly - See Parts Catalog
  • Release Tool: No Tool Required
  • Diagnostic Test Probe: No Tool Required
A11 Radio X3 (UEW)

Pin Size Color Circuit Function Option
- - TWINAX - Navigation Display Signal -
