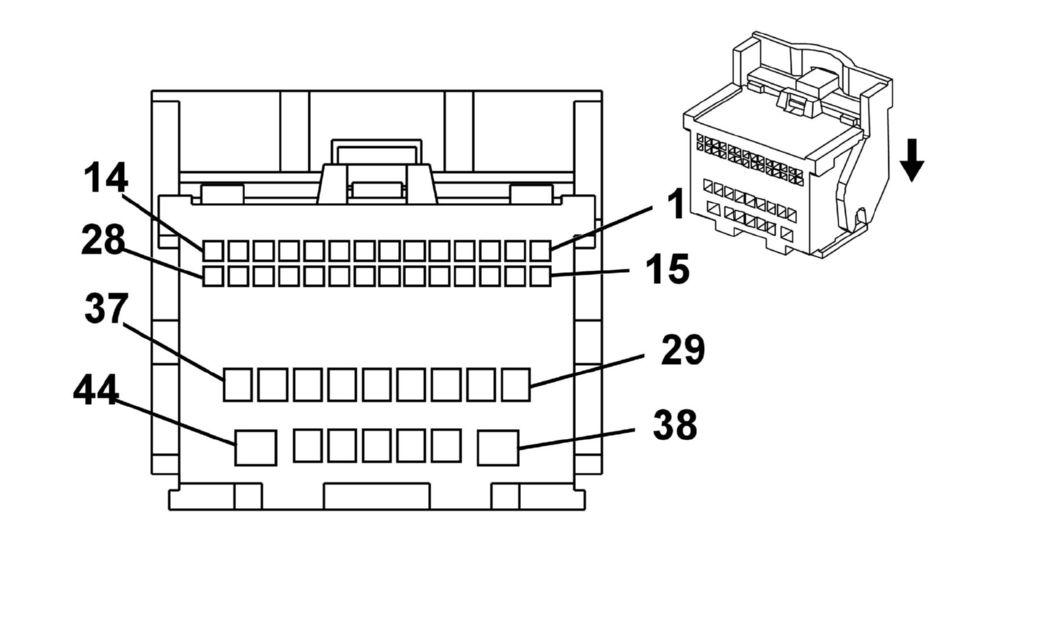

A11 Radio X1

GM1974986Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13589609
  • Service Connector: 88988902
  • Description: 44-Way F GT 150/280 64 Series (BK)
Terminal Part Information
  • Pins: 2, 3, 6, 10, 11, 13, 14, 16, 17, 20, 23, 24, 27, 37
  • Terminated Lead: 13575866
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
  • Pins: 29, 30-34, 37, 39-43
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Pins: 31-34, 39, 40-43
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Pins: 38, 44
  • Terminated Lead: 13575753
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: 2/A
A11 Radio X1

Pin Wire Circuit Function
1 - - Not Used
2 0.35 YE 7459 Integrated Center Stack Serial Data Low
3 0.35 BARE 7460 Integrated Center Stack Serial Data Shield
4-5 - - Not Used
6 0.5 BK/YE 659 Low Reference (UE1)
7-9 - - Not Used
10 0.35 D-GN 5841 Right Auxiliary Audio Signal (2) (Without KTA)
0.35 BN 3378 Right Auxiliary Audio Signal (3) (KTA)
11 0.35 L-BU 2060 Auxiliary Detection Signal (Without KTA)
12 - - Not Used
13 0.35 GY/L-GN 3291 Integrated Center Stack Wake Up Signal
14 0.5 L-GN 5060 Low Speed GMLAN Serial Data
15 - - Not Used
16 0.35 VT 7458 Center Integrated Center Stack Serial Data High
17 0.35 BARE 5842 Auxiliary Audio Screen (2) (Without KTA)
18-19 - - Not Used
20 0.5 YE 658 Cellular Telephone Voice Signal (UE1)
21-22 - - Not Used
23 0.35 VT 5843 Auxiliary Audio Common Signal (Without KTA)
0.35 D-GN 3376 Auxiliary Audio Common Signal (3) (KTA)
24 0.35 GY 5839 Left Auxiliary Audio Signal (2) (Without KTA)
0.35 VT 3377 Left Auxiliary Audio Signal (3) (KTA)
25-26 - - Not Used
27 0.35 VT 3290 Integrated Center Stack Reset Signal
28 - - Not Used
29 0.35 BARE 2011 Left Front Audio Drain Wire (KTA)
30 0.35 BARE 2099 Left Rear Audio Drain Wire (KTA)
31 0.35 L-BU/OG 1546 Front Low Level Audio (-) (UQA)
0.75 YE/BK 117 Right Front Speaker Signal (-) (1) (Without UQA)
32 0.35 OG/D-BU 1947 Left Front Low Level Audio (-) (UQA)
0.75 BN/D-BU 118 Left Front Speaker Signal (-) (1) (without UQA)
33 0.35 L-BU/BK 1946 Right Rear Low Level Audio (-) (UQA)
0.75 D-BU/BK 115 Right Rear Speaker Signal (-) (Without UQA)
34 0.3 OG/VT 1999 Left Rear Low Level Audio (-) (UQA)
0.75 D-GN/BK 116 Left Rear Speaker Signal (-) (Without UQA)
35-36 - - Not Used
37 0.5 VT/D-BU 6978 Amplifier Control (UQA)
38 1.5 BK 1750 Ground
39 0.35 YE 512 Right Front Low Level Audio Signal (UQA)
0.75 YE 200 Right Front Speaker (+) (1) (WIthout UQA)
40 0.35 D-BU 511 Left Front Low Level Audio Signal (UQA)
0.75 D-BU 201 Left Front Speaker (+) (1) (Without UQA)
41 0.35 BN/WH 546 Right Rear Low Level Audio Signal (UQA)
0.75 WH 46 Right Rear Speaker (+) (Without UQA)
42 0.35 L-GN/BK 599 Left Rear Low Level Audio Signal (UQA)
0.75 D-GN 199 Left Rear Speaker (+) (Without UQA)
43 0.5 D-GN/YE 7066 Entertainment Remote Enable Signal (UYS)
0.35 D-GN/YE 7066 Entertainment Remote Enable Signal (UQA)
44 1.5 RD/D-GN 40 Battery Positive Voltage
