Driver Information Display Bezel Replacement

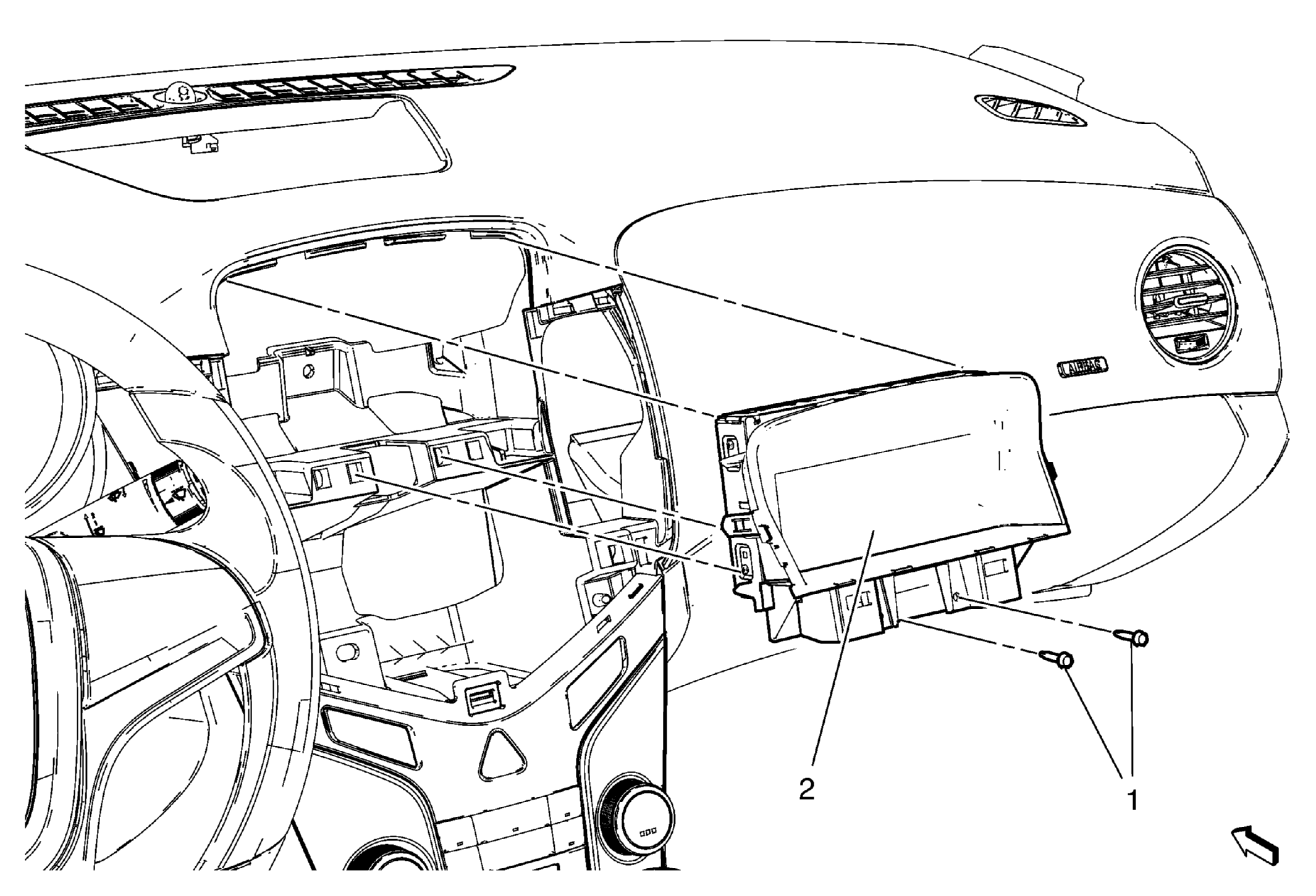

Fig 1: Driver Information Display Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio control module. Refer to Radio Control Module Replacement .
1	Driver Information Display Bezel Screw (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Driver Information Display Bezel Procedure Depress tabs on side of bezel. When replacing the driver information display bezel, remove the driver information display. Refer to Driver Information Display Replacement .

Callout

Component Name

Preliminary Procedures
Remove the radio control module. Refer to Radio Control Module Replacement .

Driver Information Display Bezel Screw (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Driver Information Display Bezel

Procedure

Depress tabs on side of bezel.
When replacing the driver information display bezel, remove the driver information display. Refer to Driver Information Display Replacement .
