Chevrolet
>>
2012
>>
Cruze LS, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel System Displays And Gauges
>>
Wiring Schematics
>>
Instrument Cluster Wiring Schematics
>>
Power, Ground, Gauges And Serial Data
Power, Ground, Gauges And Serial Data

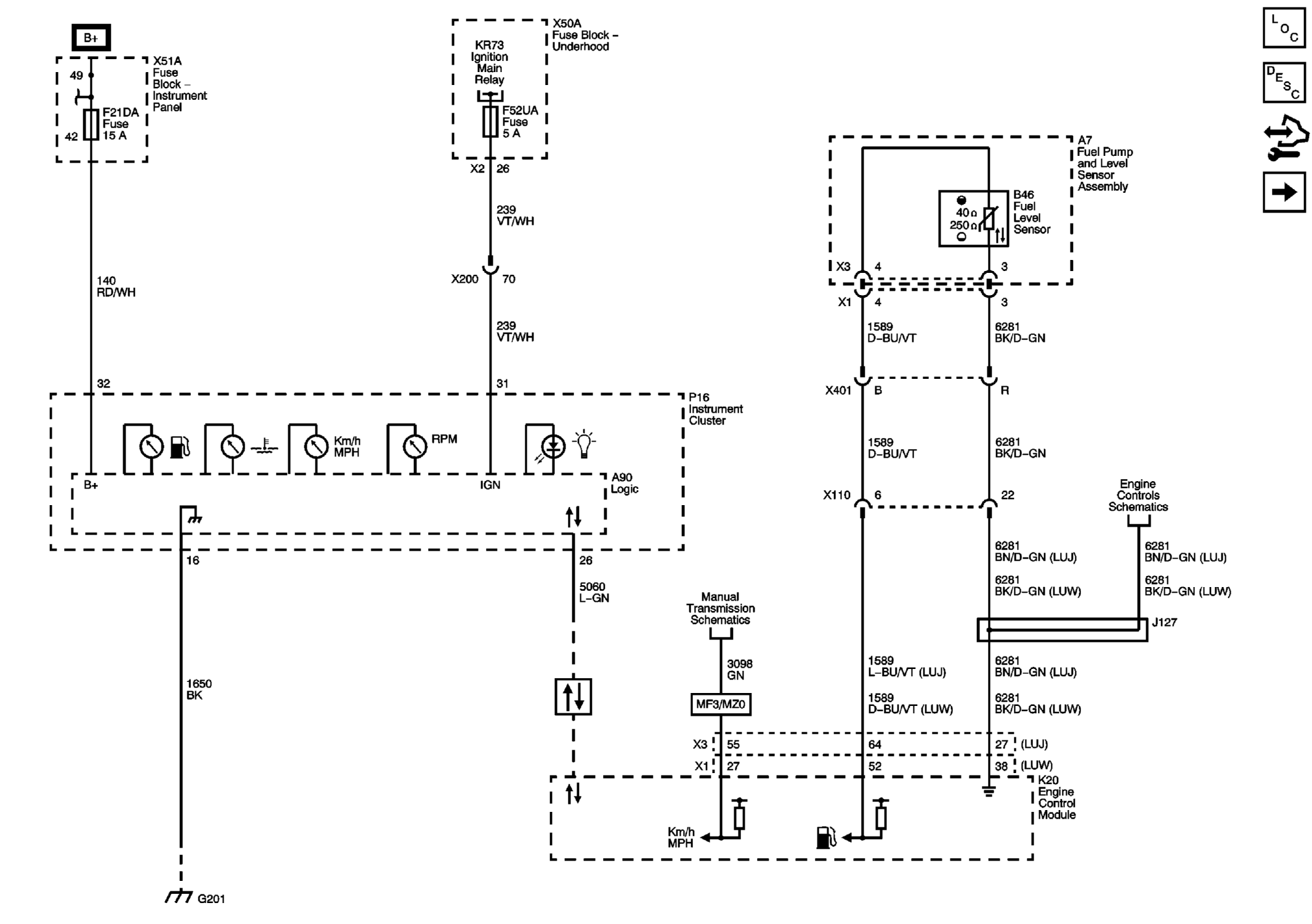

Fig 1: Power, Ground, Gauges And Serial Data Wiring Schematic
