Side Impact Sensor - Left Front




Passenger Compartment/Roof Component Views

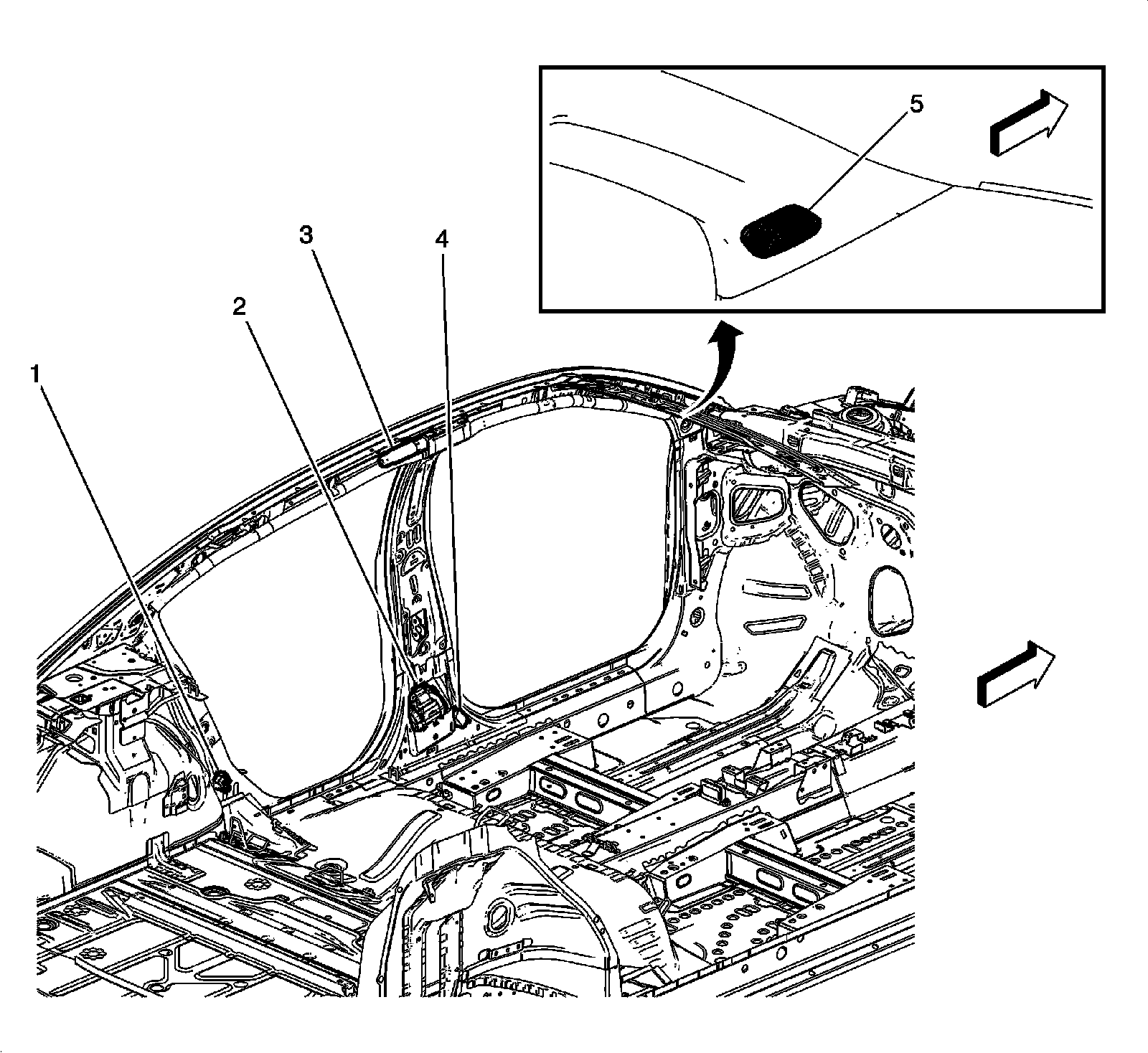

Left Side of Passenger Compartment Components




1 - B63LR Side Impact Sensor - Left Rear
2 - F112D Seat Belt Retractor Pretensioner - Driver
3 - F105L Roof Rail Air Bag - Left
4 - B63LF Side Impact Sensor - Left Front
5 - P19H Speaker - Left Front Tweeter
