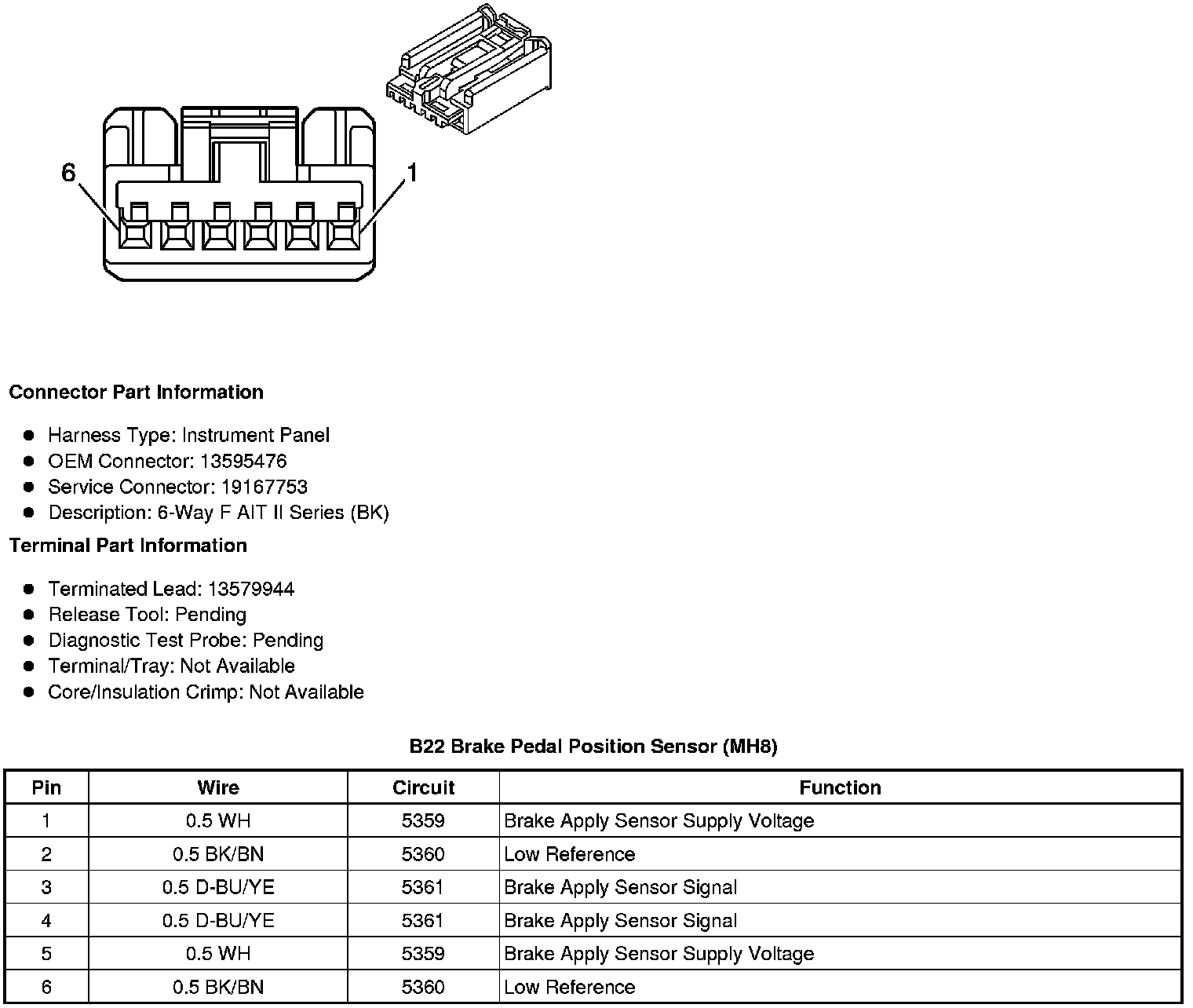

Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Diagrams >> Brake Pedal Position Sensor (MH8)
