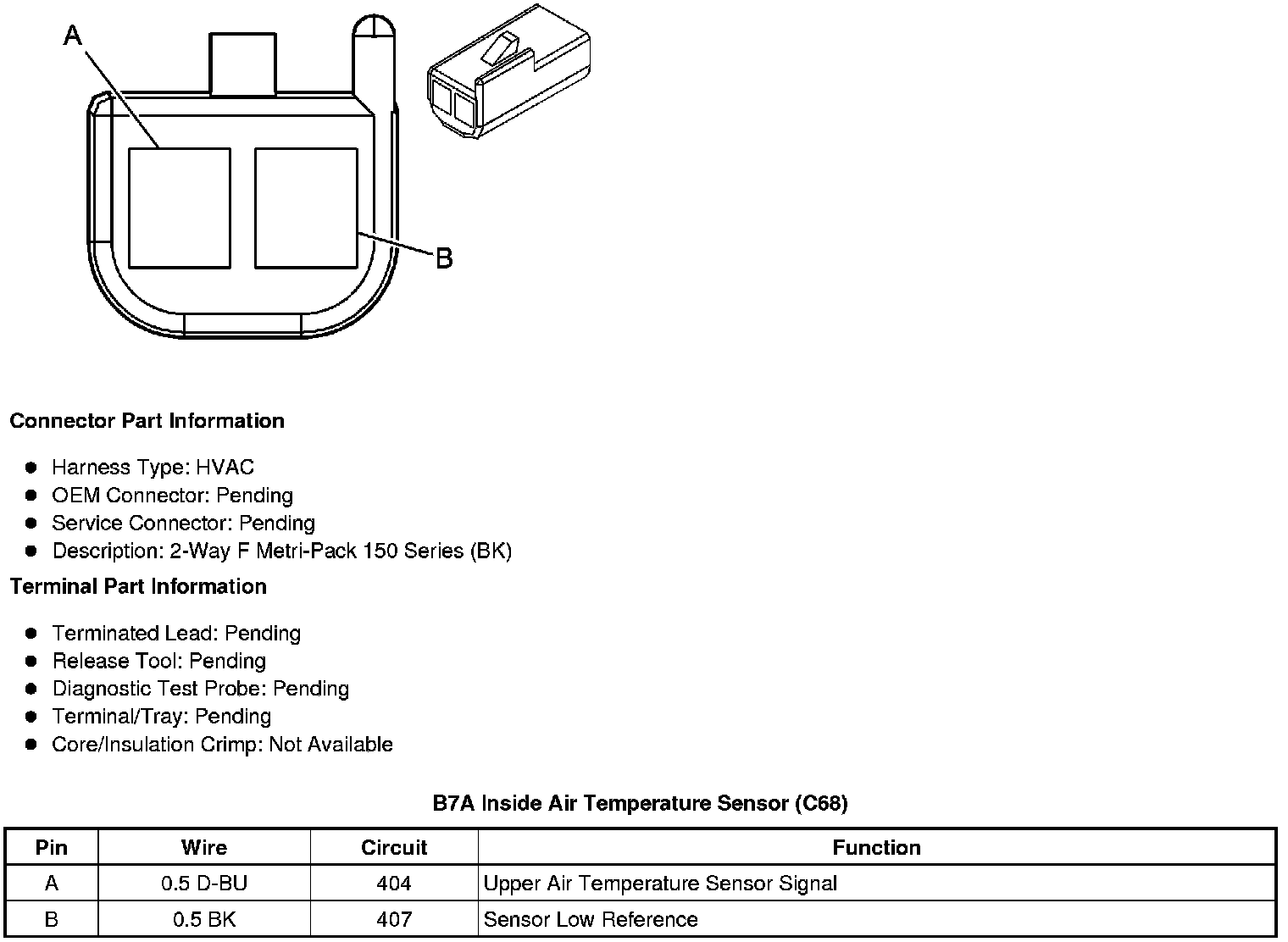

Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Cabin Temperature Sensor / Switch >> Diagrams >> Inside Air Temperature Sensor (C68)
