Power Seat Switch: Diagrams




Component Connector End Views

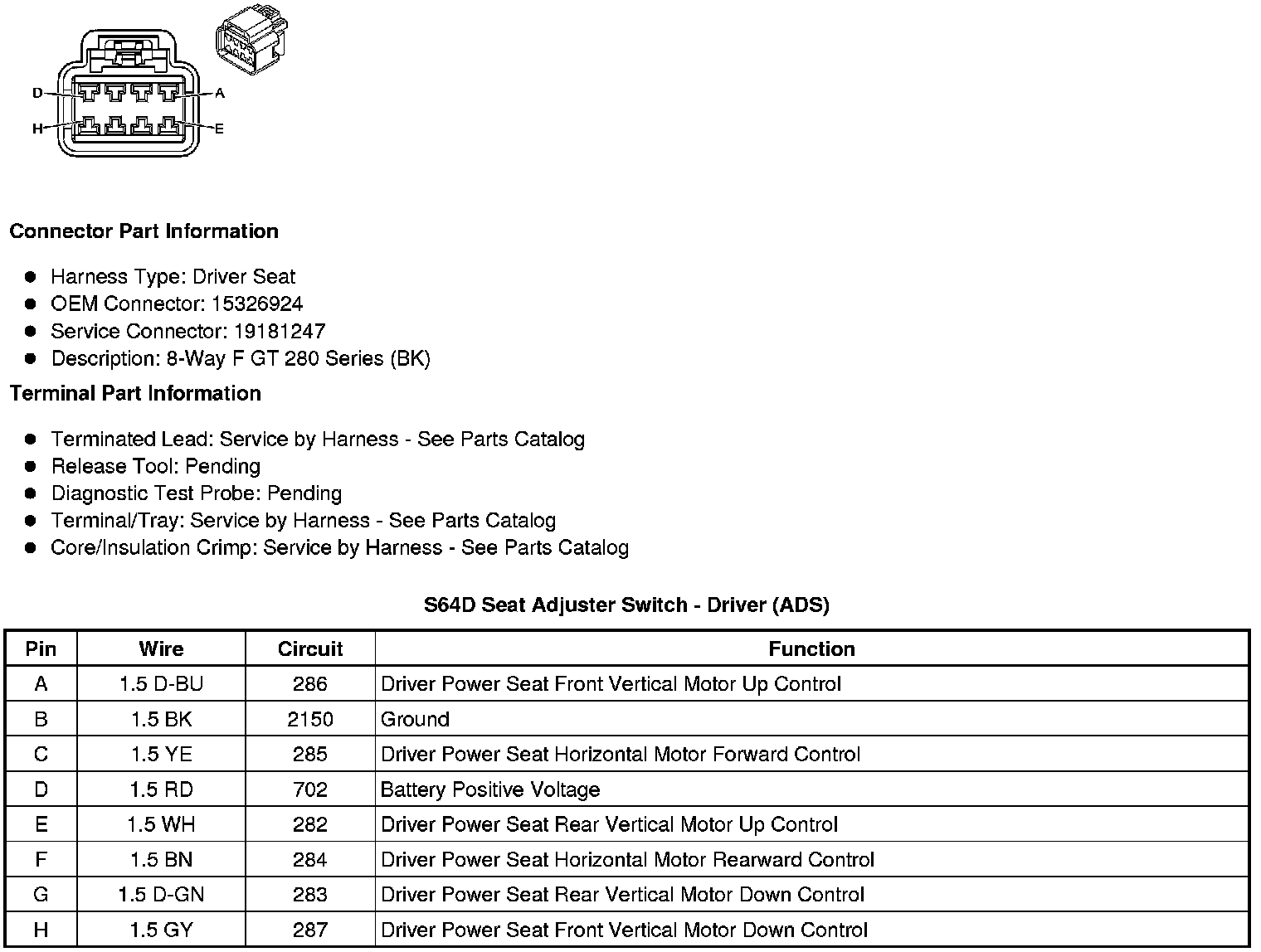

S64D Seat Adjuster Switch - Driver (ADS)
