Rear Parking Assist Control Module X2 (UD7)

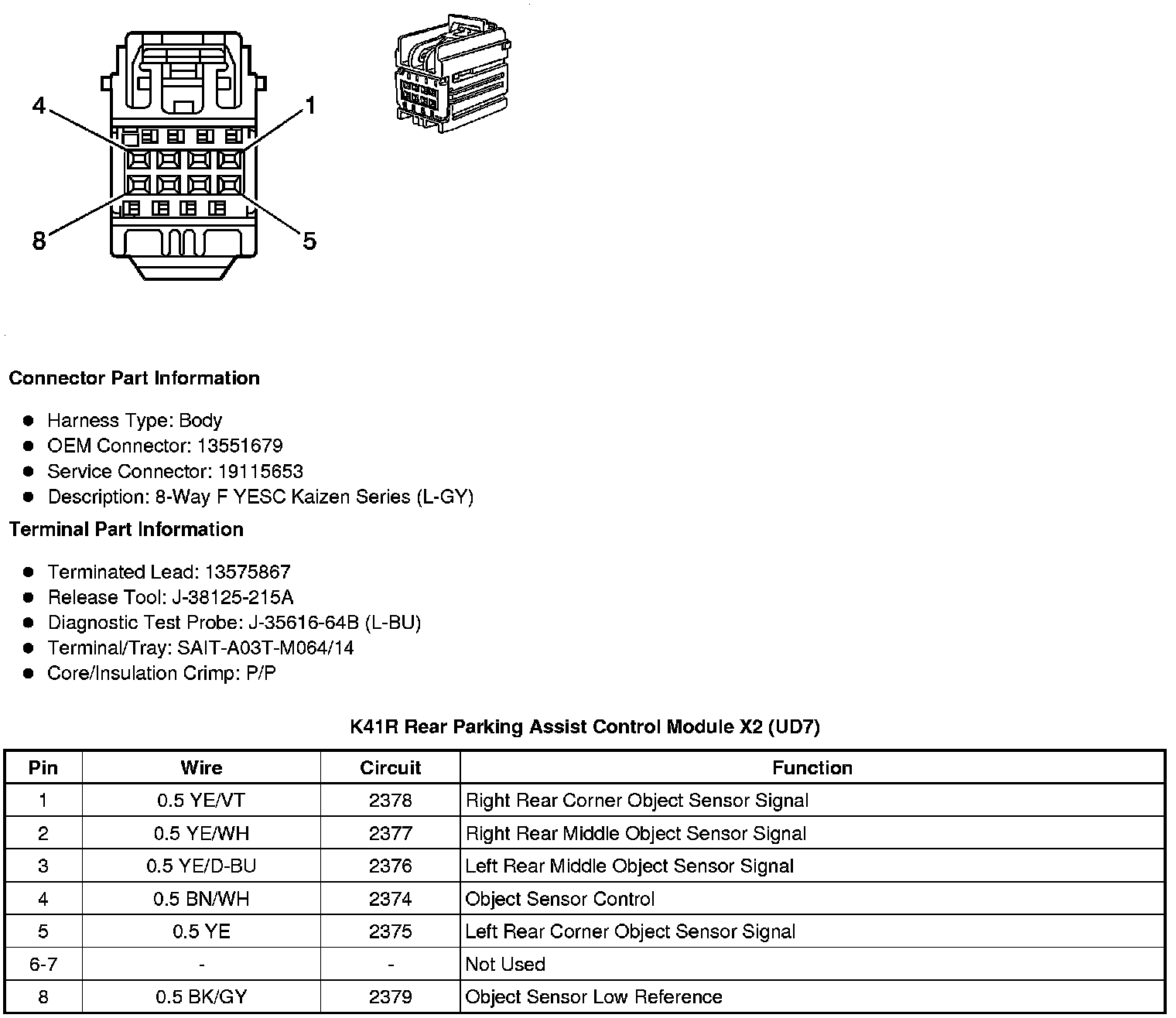

Component Connector End Views

K41R Rear Parking Assist Control Module X2 (UD7)
