Air Cleaner Inlet Duct Replacement




Air Cleaner Inlet Duct Replacement (1.6L LDE, LXV, 1.8L 2H0, LUW and LFH)

Removal Procedure

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

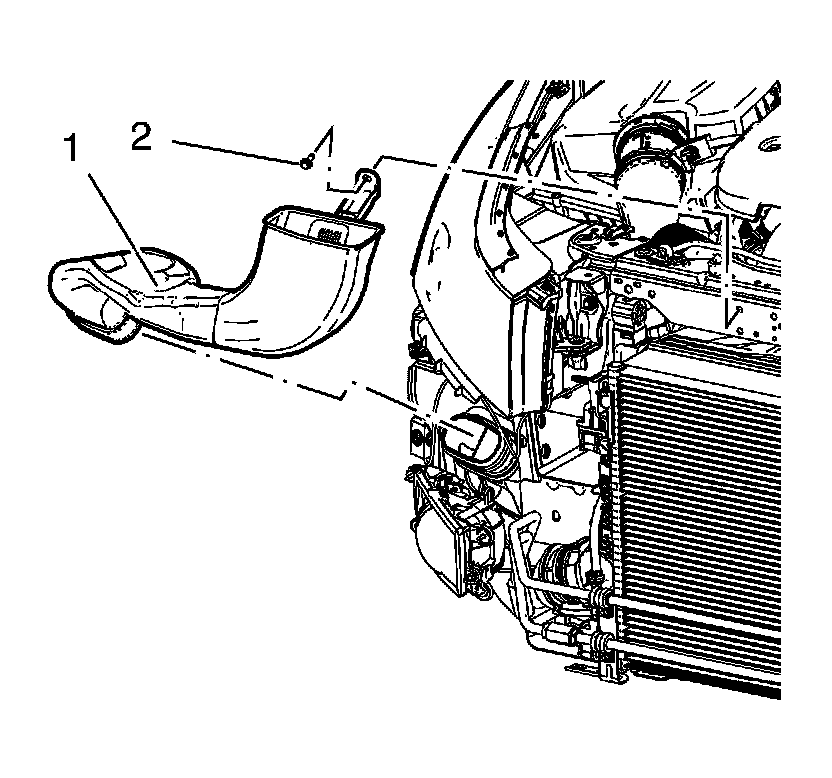

2. Remove the intake air duct bolt (2).
3. Remove the intake air duct (1).

Installation Procedure




1. Install the intake air duct (1).

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the intake air duct bolt (2) and tighten the to 5 Nm (44 lb in).
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
