Camshaft Oil Seal: Service and Repair

Camshaft Seal Replacement (1.6L LDE, LXV, 1.8L 2H0, LUW and LFH)

Special Tools
* EN-422 - Installer
* EN-45000 - Remover

For equivalent regional tools, refer to Special Tools Special Tools.

Removal Procedure

1. Remove the camshaft position actuator adjuster. Refer to Camshaft Position Actuator Adjuster Replacement Camshaft Position Actuator Adjuster Replacement.





Note: Do not damage the sealing surfaces.

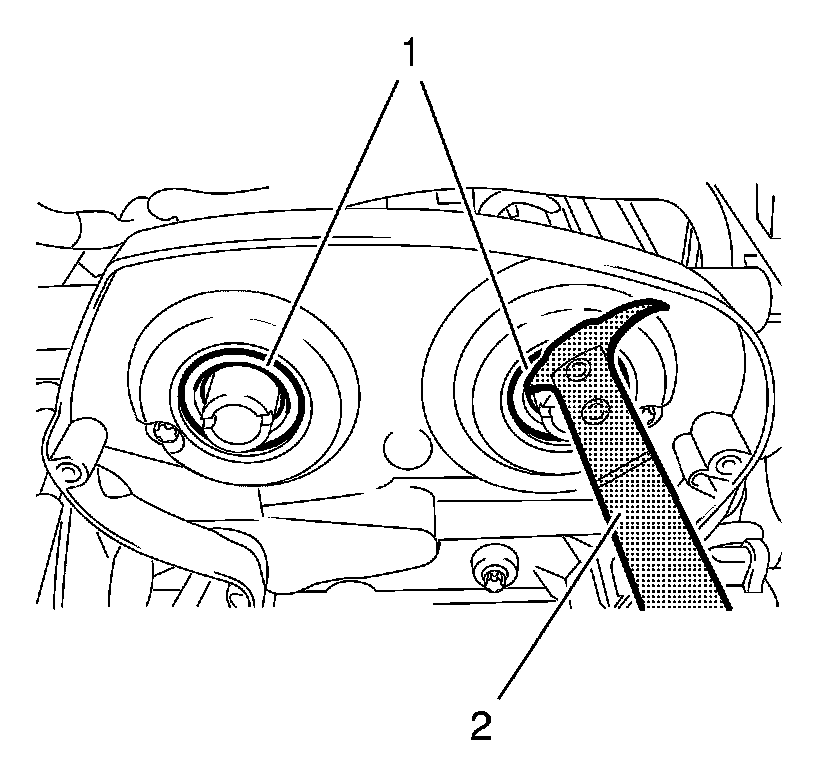

2. Use the EN-45000 - remover to loosen the camshaft front oil seals (1).




3. Remove the camshaft front oil seals (1).

Installation Procedure




1. Insert 2 NEW camshaft front oil seals (1).




2. Tighten the seal ring with EN-422 - installer (3) on the camshaft until this is in contact with the cylinder head.
3. To install, use camshaft sprocket bolt (1) in conjunction with shims (2) with a total thickness of approximately 10 mm (0.393 in).
4. Install the camshaft position actuator adjuster. Refer to Camshaft Position Actuator Adjuster Replacement Camshaft Position Actuator Adjuster Replacement.
