G105
G105

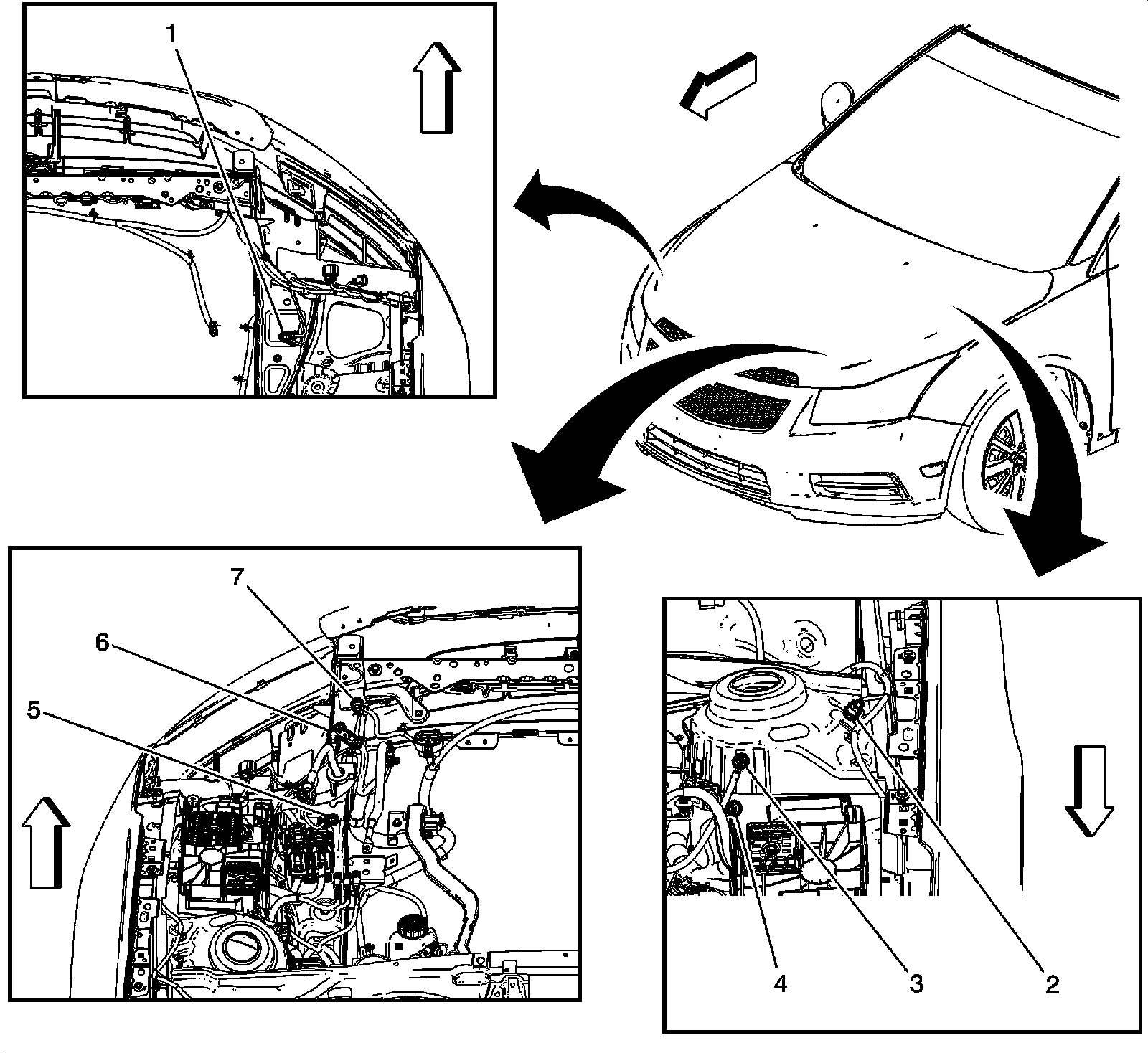

Ground Views
G100, G101, G103, G104, G105, G120, and G121
1
- G104
2
- G103
3
- G121
4
- G120
5
- G101
6
- G100
7
- G105
