Speaker
>>
Speaker - Left Front
Speaker - Left Front

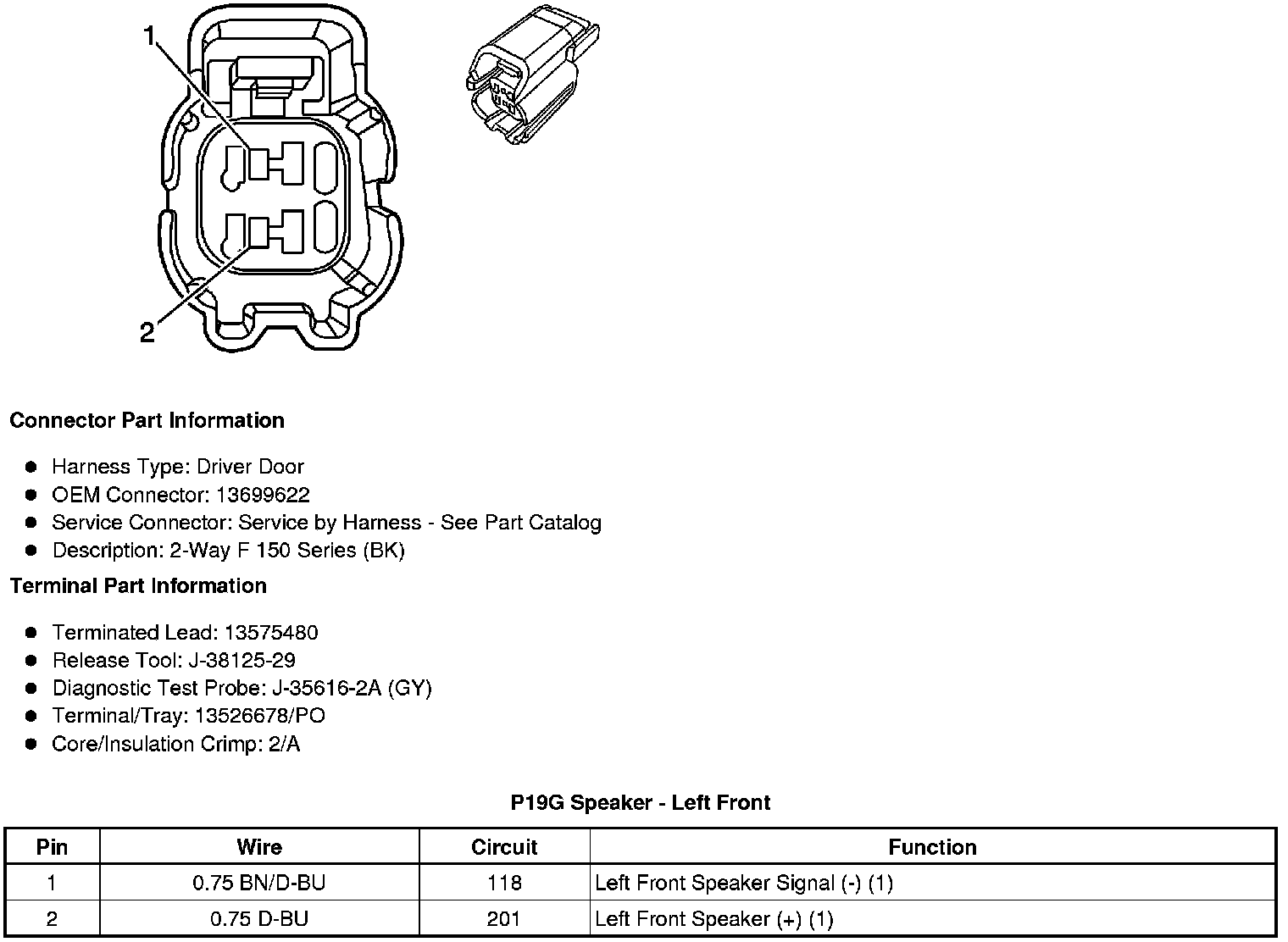

Component Connector End Views
P19G Speaker - Left Front
