Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Tensioner >> Seat Belt Anchor Pretensioner - Passenger

Seat Belt Anchor Pretensioner - Passenger

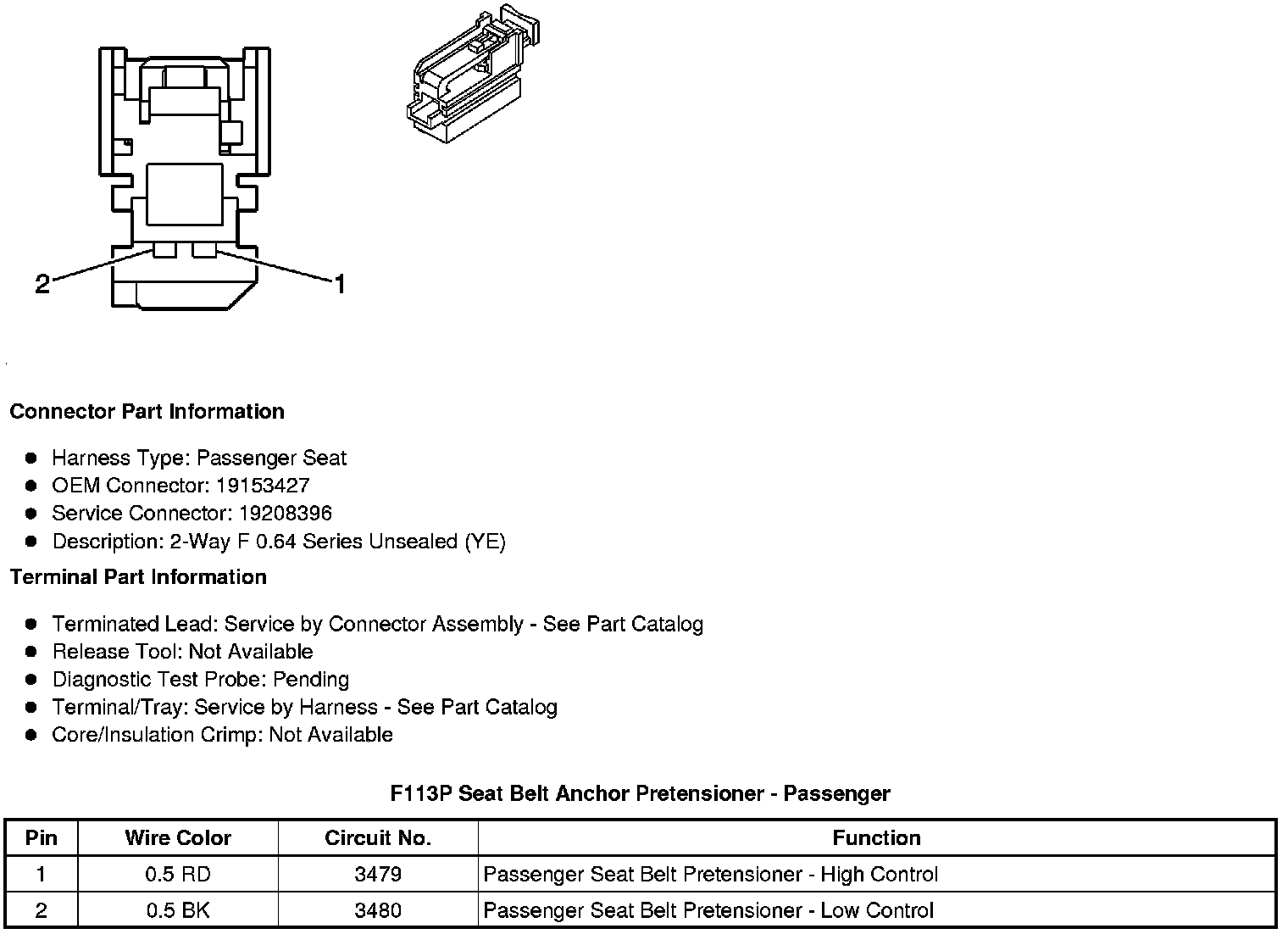

Component Connector End Views

F113P Seat Belt Anchor Pretensioner - Passenger
