Canister Purge Solenoid
>>
Evaporative Emission Purge Solenoid Valve
Evaporative Emission Purge Solenoid Valve
Component Connector End Views

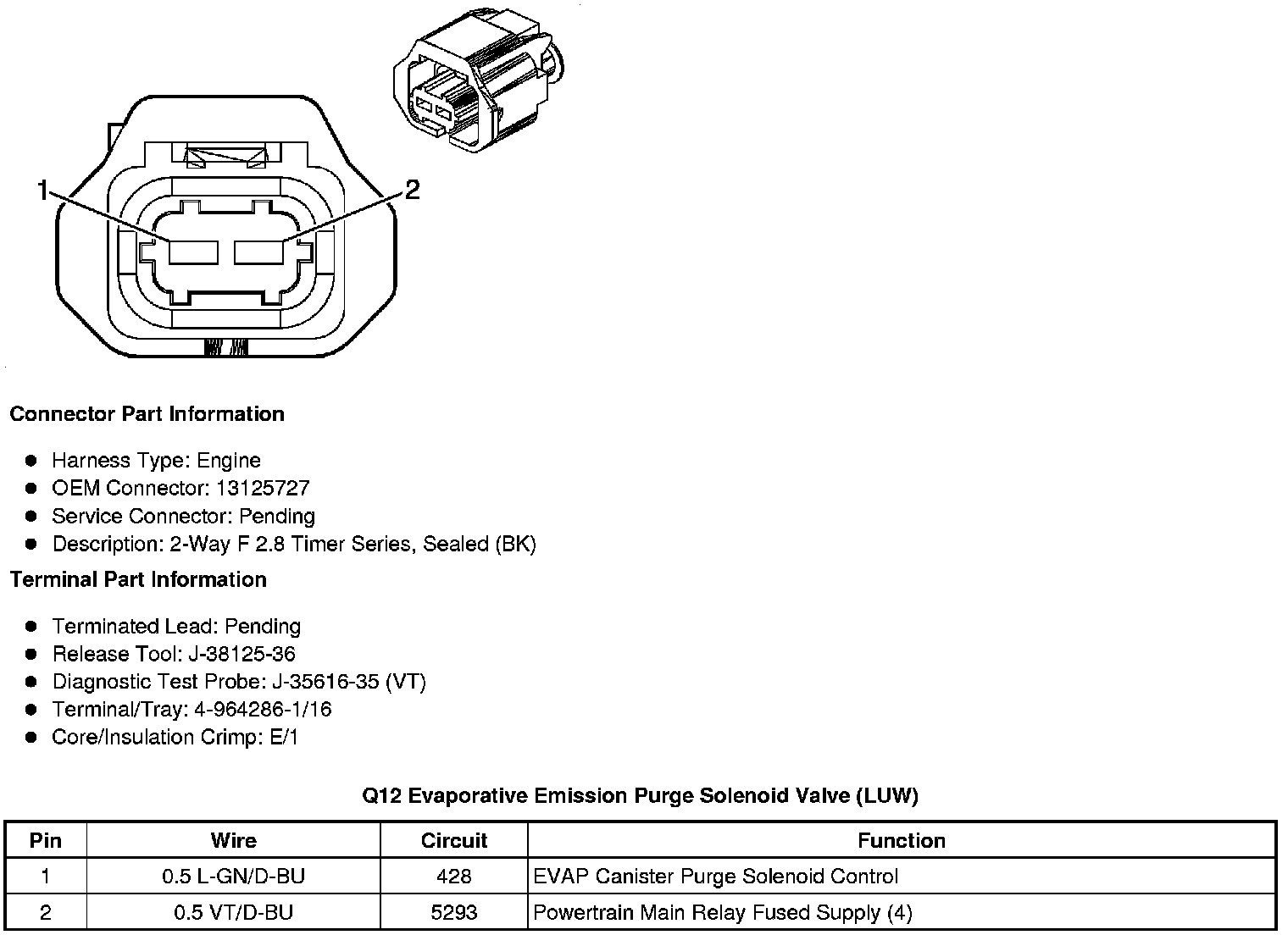

Q12 Evaporative Emission Purge Solenoid Valve (LUW)
