Air Conditioning Compressor Replacement (LUW)

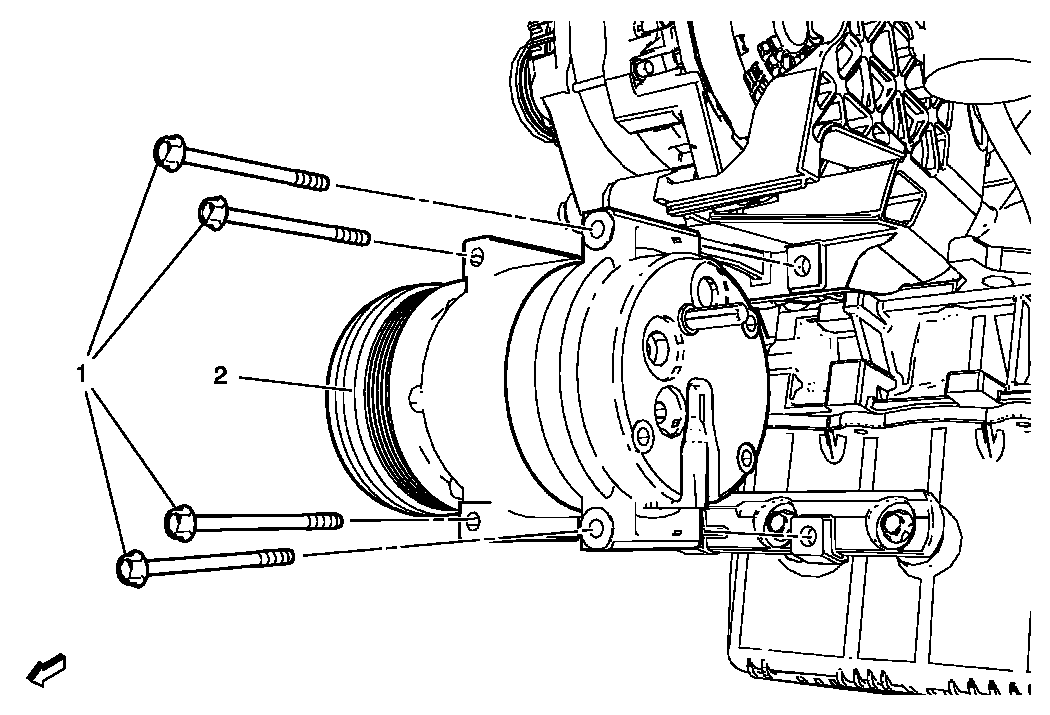

Fig 1: Air Conditioning Compressor And Bolts
GM2028055Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Replacement (LUW)

Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove drive belt. Refer to Drive Belt Replacement .
  3. Disconnect the air conditioning compressor electrical connector.
  4. Loosen air conditioning compressor and condenser hose from air conditioning compressor. Refer to Air Conditioning Compressor and Condenser Hose Replacement (LUW) , Air Conditioning Compressor and Condenser Hose Replacement (LUJ) .
1 Air Conditioning Compressor Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m(17 lbf ft)
2 Air Conditioning Compressor

Procedure

  • Use a low viscosity, poly-alkylene glycol (PAG) oil. Use of the incorrect oil can result in compressor failure.
  • When replacing the A/C compressor, balance the compressor oil. Refer to Air Conditioning Compressor Oil Balancing
  • Using GE 39400  detector leak test A/C compressor fittings.

Special Tools
GE 39400  Electronic Halogen Leak Detector
For equivalent regional tools, refer to Special Tools .
