Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement .

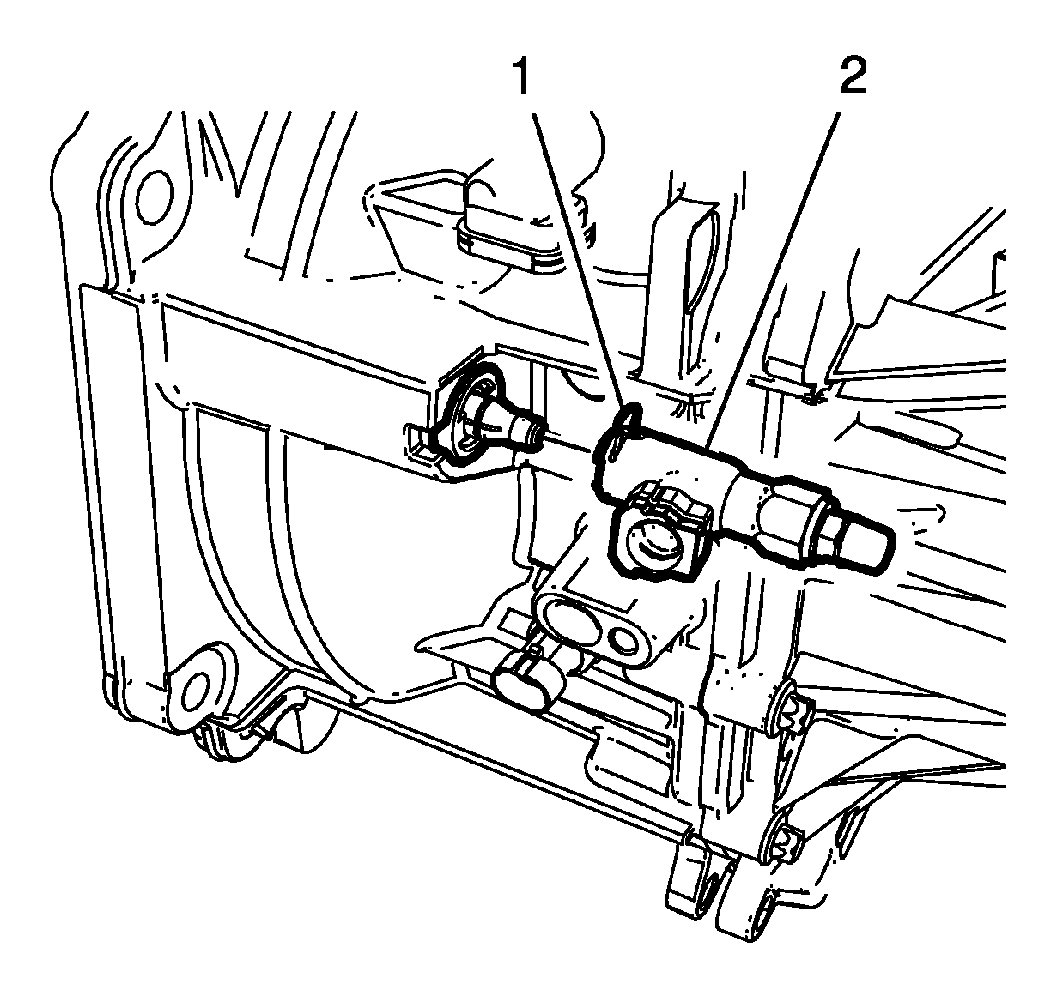

    2. Fig 1: Clutch Actuator Cylinder Pipe Elbow And Retainer
    GM2699346Courtesy of GENERAL MOTORS COMPANY
  2. Open the clutch actuator cylinder pipe elbow retainer (1).
  3. Remove the clutch actuator cylinder pipe elbow (2).

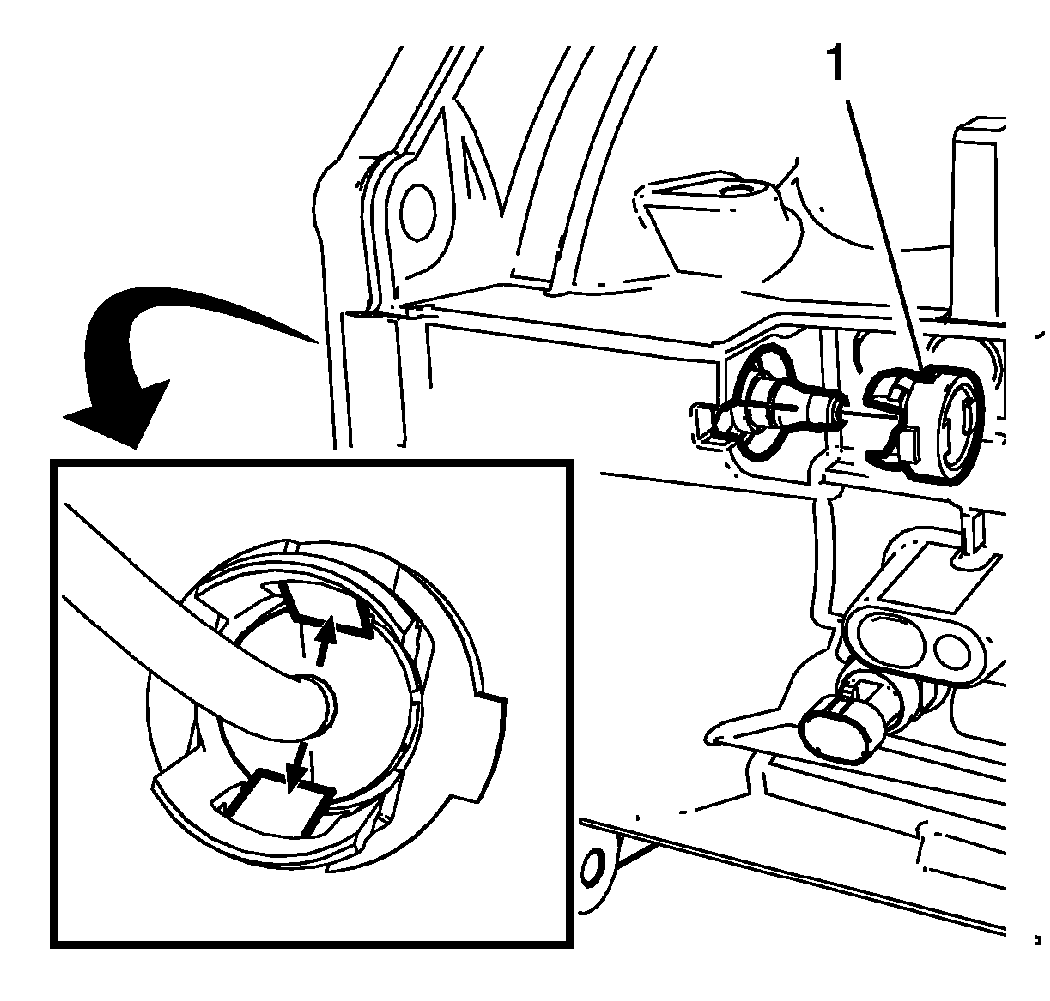

    4. Fig 2: Clutch Actuator Cylinder Pipe Sleeve
    GM2699347Courtesy of GENERAL MOTORS COMPANY
  4. Release the fastening sleeve keys (arrows) using a screwdriver or equivalent to remove the fastening sleeve.
  5. Remove the clutch actuator cylinder pipe sleeve (1) carefully out of the transmission housing and clutch actuator cylinder pipe.

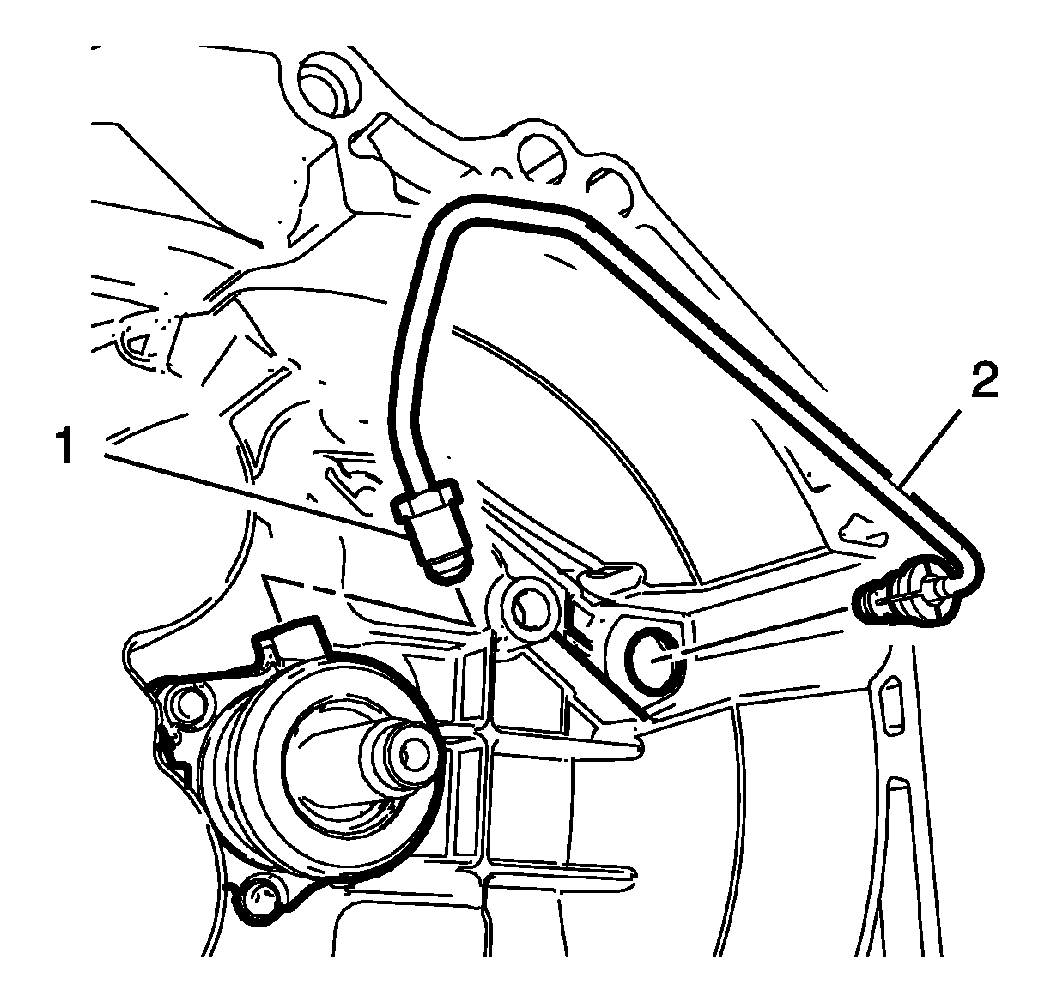

    6. Fig 3: Clutch Actuator Cylinder Pipe
    GM2699348Courtesy of GENERAL MOTORS COMPANY
  6. Loosen the clutch actuator cylinder pipe nut (1) from the clutch actuator cylinder.
  7. Remove the clutch actuator cylinder pipe (2) from the transmission housing and clutch actuator cylinder.
