Section 4 (Engine Controls/Fuel - 1.8L - Wiring Schematic Diagrams)
>>
Wiring Schematics
>>
Engine Controls Wiring Schematics (LUW)
>>
Controlled/Monitored Subsystem References
Controlled/Monitored Subsystem References
WARNING:
This page is about a different variant/trim than selected.

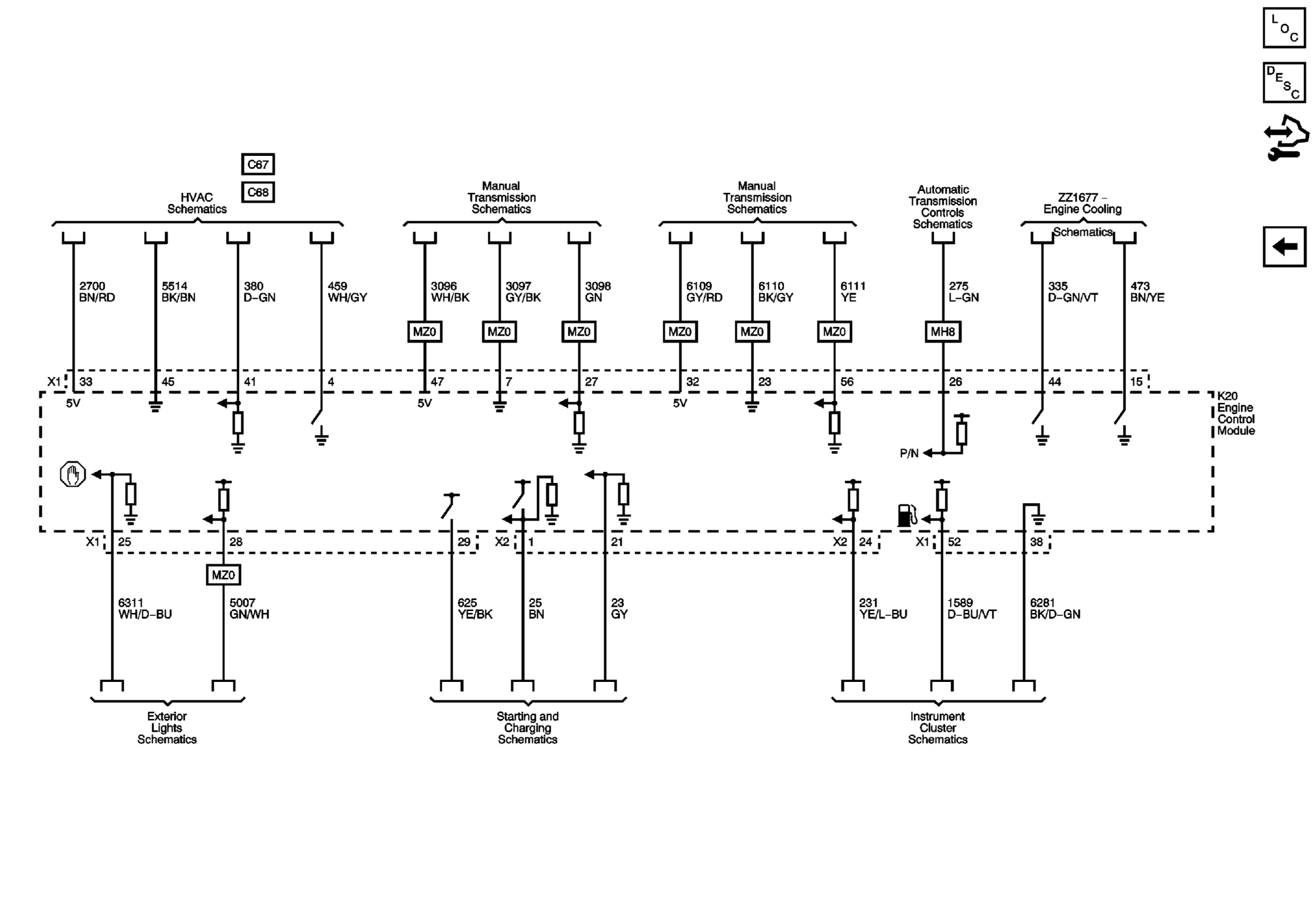

Fig 1: Controlled/Monitored Subsystem References Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
