Installation Procedure

WARNING: This page is about a different variant/trim than selected.

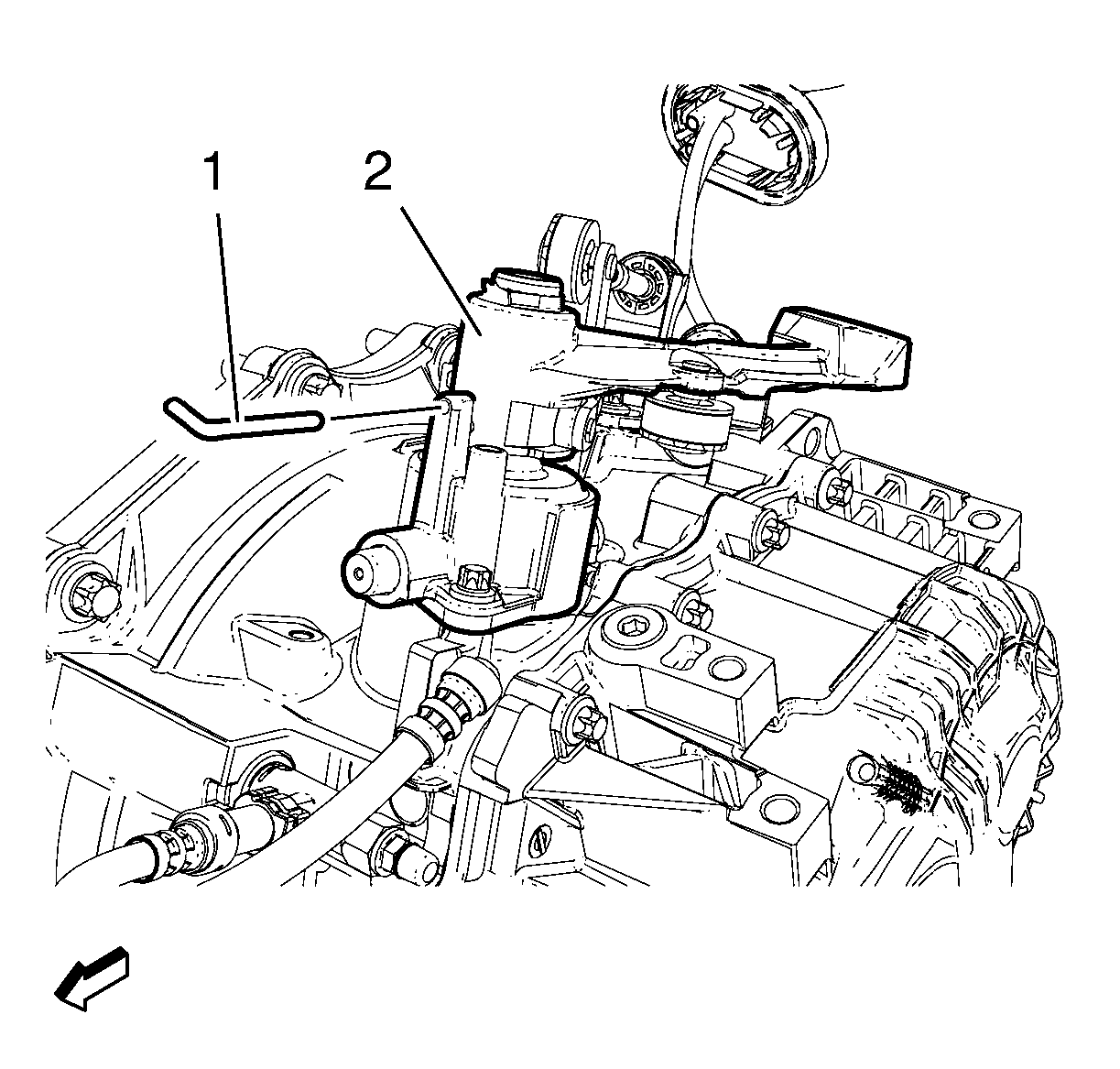

Fig 1: Shift Lever And Select Lever Cable Adjust Locks

Courtesy of GENERAL MOTORS COMPANY

NOTE:

During this procedure DO NOT touch or preload the fixed shift lever as this may cause improper adjustment of the shift system.

Secure adjuster locks (1) by pushing down until locked and fully seated. One for each cable.

Fig 2: Shift Control Lever

Courtesy of GENERAL MOTORS COMPANY

Remove the DT-527-A adjuster (1) or the 5 mm drill bit from the shift control lever.

Fig 3: Transmission Control Housing Adjuster Lock

Courtesy of GENERAL MOTORS COMPANY

Remove the DT-527-A adjuster (1) or the 5 mm drill bit from the transmission gear control.
Install the front floor console storage tray. Refer to Front Floor Console Stowage Tray Replacement .
Install the transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement .
