Windshield Wiper and Washer Switch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

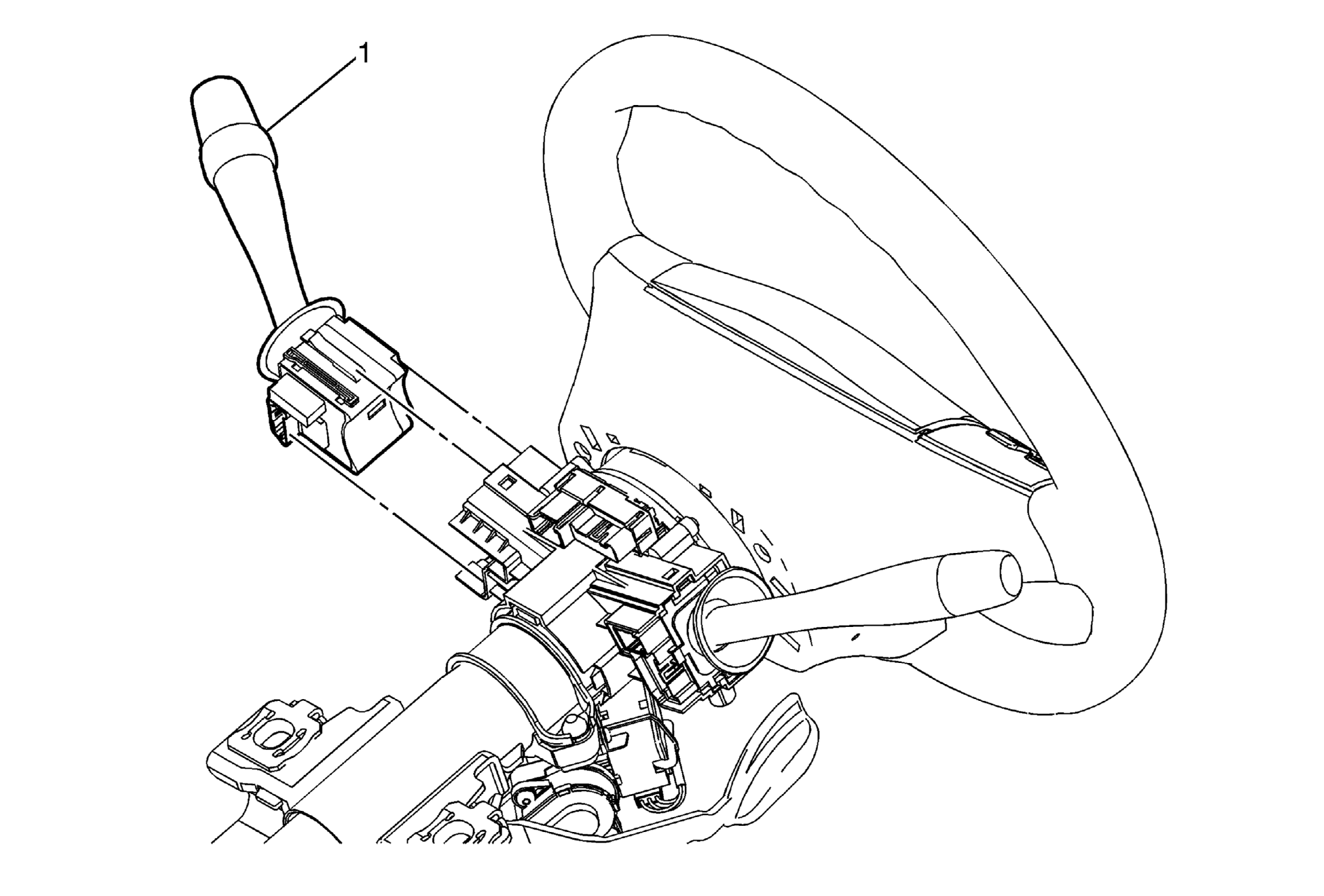

Fig 1: View Of Windshield Wiper & Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Plate Replacement . Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Windshield Wiper And Washer Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to remove the windshield wiper and washer switch.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Plate Replacement .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Windshield Wiper And Washer Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to remove the windshield wiper and washer switch.
