Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor to the wiper transmission. Refer to Windshield Wiper Motor Replacement .
  2. Connect the electrical connector to the wiper motor.

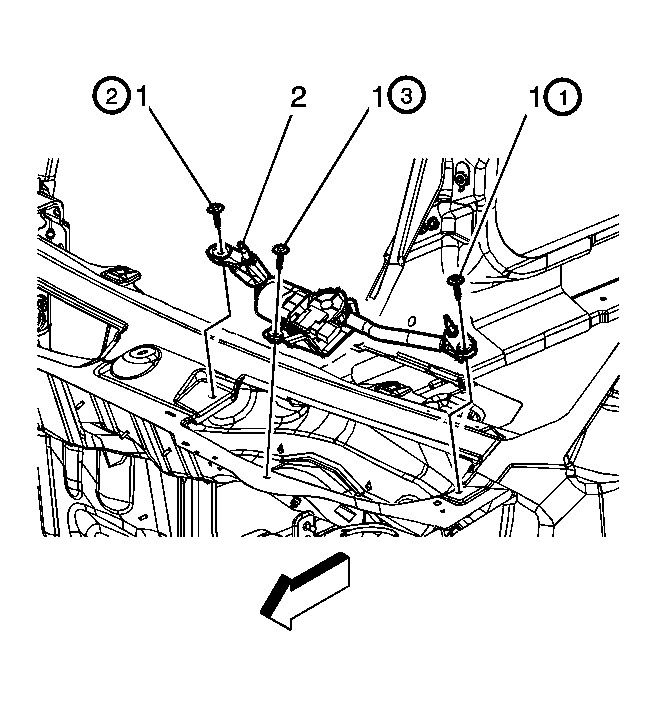

    3. Fig 1: View Of Wiper Module Assembly
    GM1655547Courtesy of GENERAL MOTORS CORP.
  3. Install the wiper transmission into the plenum.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the fasteners (1) attaching the wiper transmission assembly (2) to the plenum. Tighten the fasteners in sequence as shown to 10 N.m (89 lb in)
  5. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  6. Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
