Windshield Wiper Blade Replacement (Pontiac Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

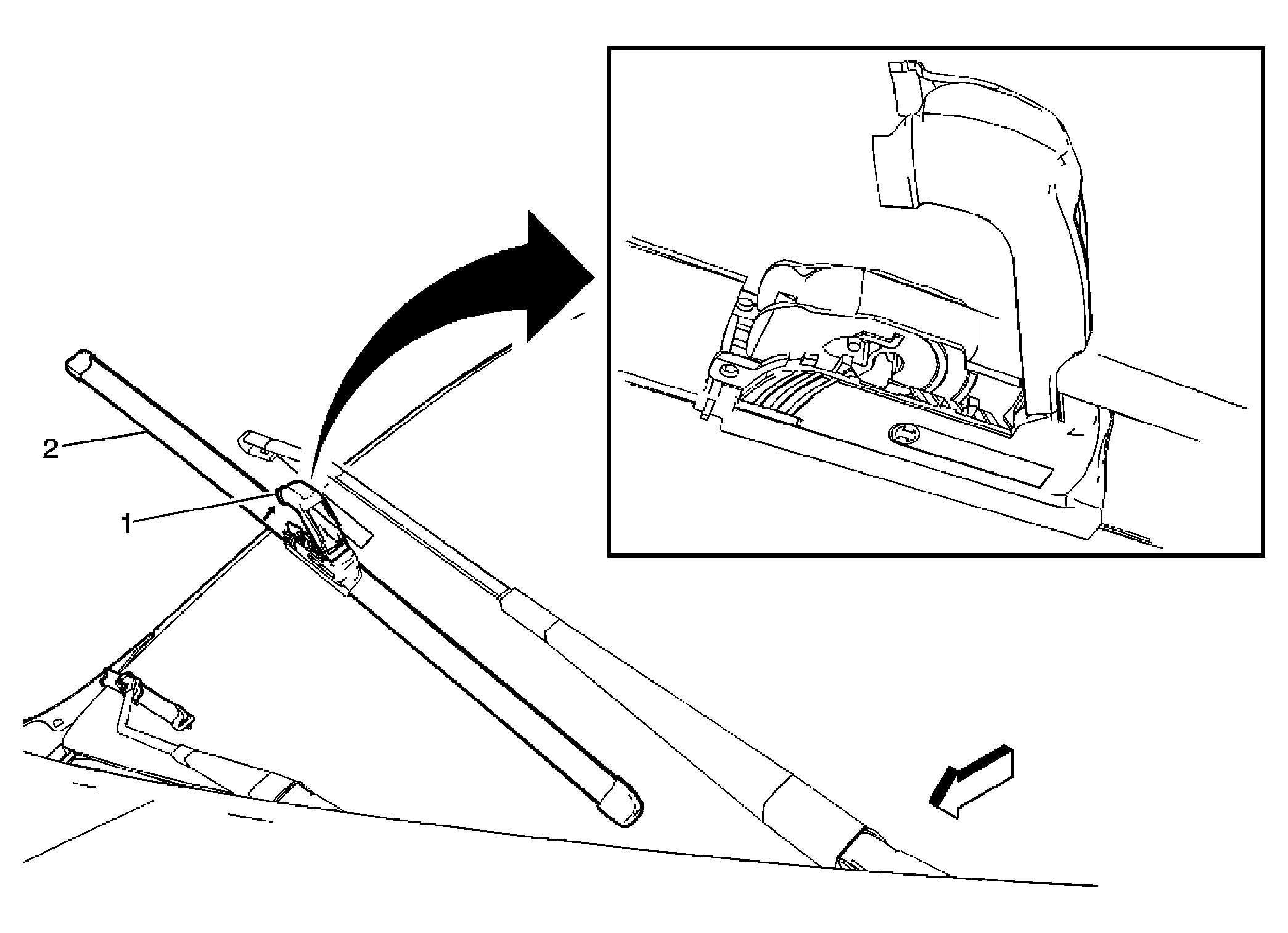

Fig 1: View Of Windshield Wiper Blade (Pontiac Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lift the wiper arm from the windshield to the service up position. Release the wiper blade finish cover and rotate the cover rearward towards the wiper arm. Release the lock securing the wiper arm sheep hook to the blade assembly. Pull the blade assembly rearward in order to release the sheep hook from the blade. Push the blade assembly away from the arm, through the finish cover.
1	Wiper Blade Finish Cover Tip: Lift and rotate the forward edge of the cover and leave the cover attached to the wiper blade assembly.
2	Wiper Blade Assembly

Callout

Component Name

Preliminary Procedure

Lift the wiper arm from the windshield to the service up position.
Release the wiper blade finish cover and rotate the cover rearward towards the wiper arm.
Release the lock securing the wiper arm sheep hook to the blade assembly.
Pull the blade assembly rearward in order to release the sheep hook from the blade.
Push the blade assembly away from the arm, through the finish cover.

Wiper Blade Finish Cover
Tip: Lift and rotate the forward edge of the cover and leave the cover attached to the wiper blade assembly.

Wiper Blade Assembly
