Windshield Washer Solvent Container Replacement (Pontiac)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

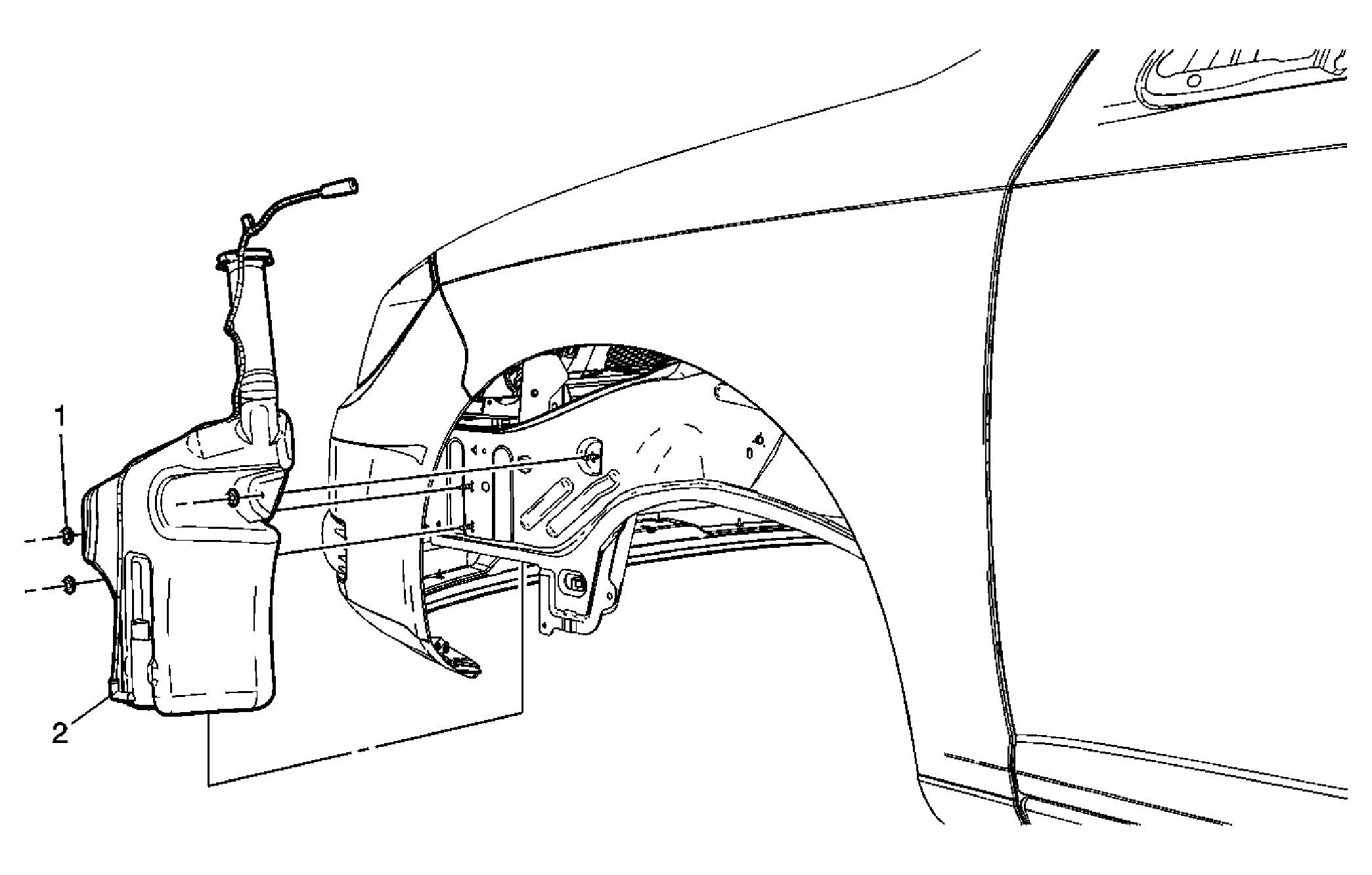

| Callout |
Component Name |
|
Preliminary Procedure
- Disconnect the washer hose clip at the left front fender flange.
- Disconnect the washer pump hose from the windshield washer hose at the left front fender flange.
- Remove the left front fender liner. Refer to Front Fender Liner Replacement
.
- Disconnect the electrical connector from the windshield washer pump.
|
| 1 |
Windshield Washer Solvent Container Nut (Qty: 3)
Tighten:
10 N.m (89 lb in)
|
| 2 |
Windshield Washer Solvent Container Assembly Procedure
- Lower and remove the windshield washer solvent container from the left front engine rail.
- Open the container cap and pour the windshield washer solvent into a suitable clean container.
- Remove the windshield washer pump hose from the retention clips on the washer container.
- Using two flat-bladed tools, remove the windshield washer pump, grommet and transfer.
- Remove the windshield washer container cap, and transfer.
|
