Windshield Washer Hose Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

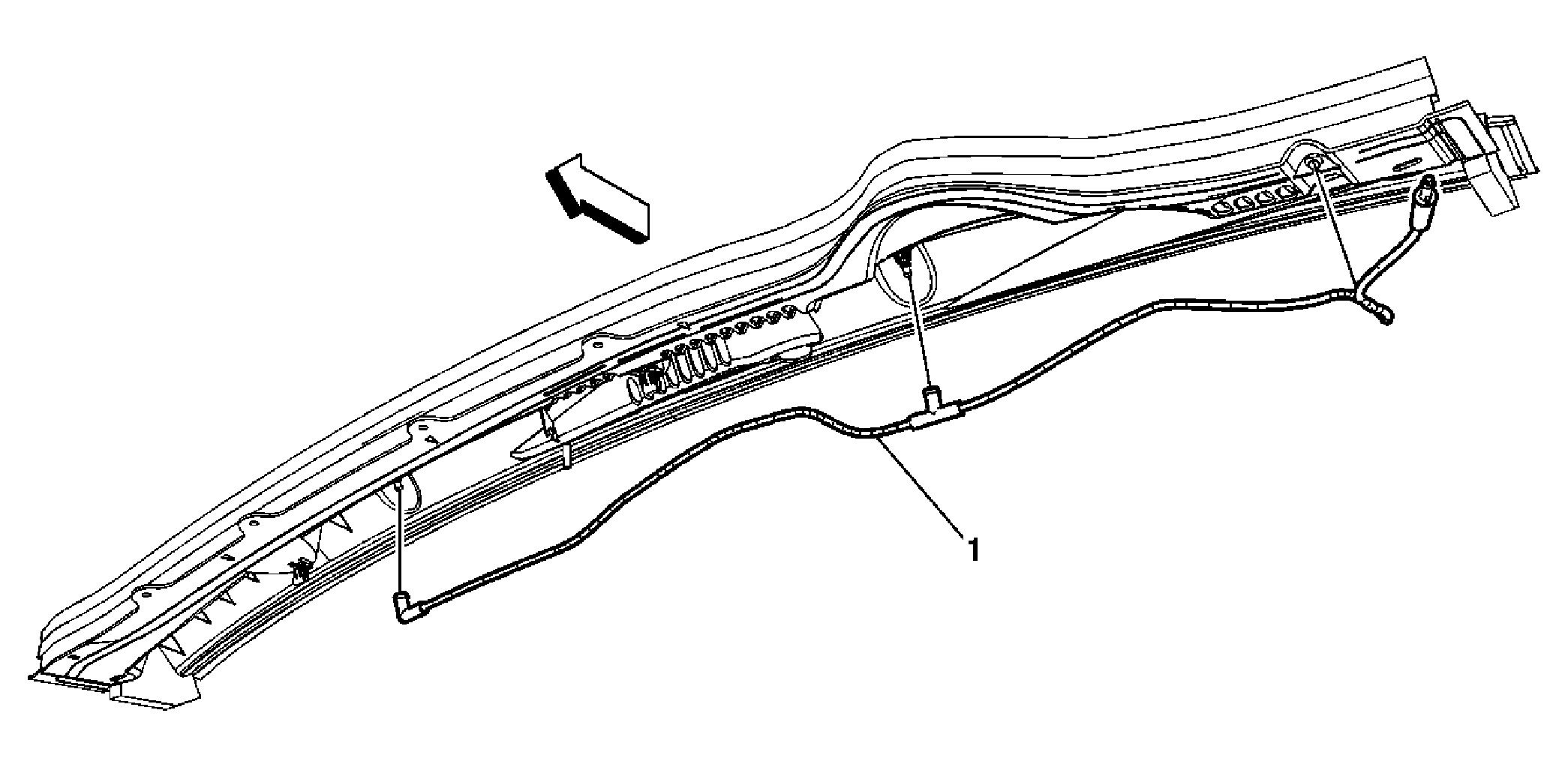

Fig 1: View Of Windshield Washer Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Washer Hose Assembly Tip: Detach the washer hose elbow and tee from the windshield washer nozzles and remove the hose from the air inlet grille panel.
