Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Washer Nozzle Tabs
    GM876379Courtesy of GENERAL MOTORS CORP.
  1. Install the washer nozzles to the air inlet grille panel.

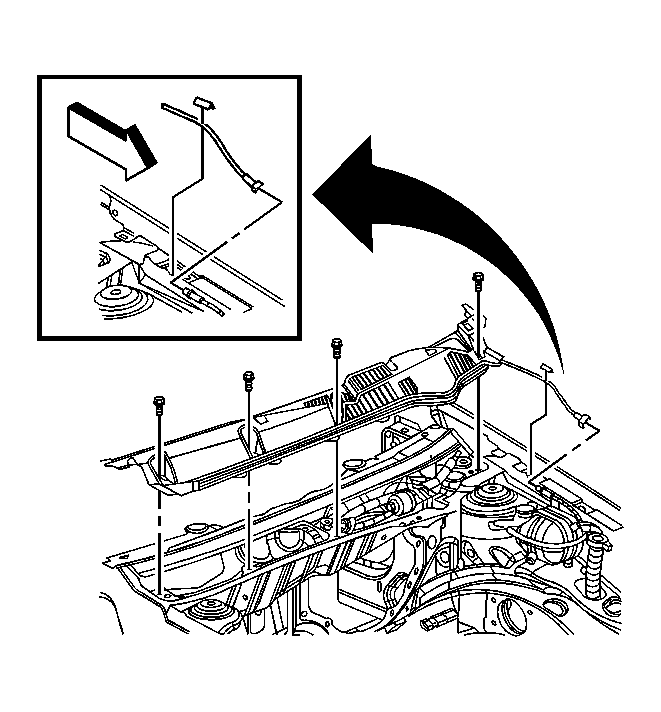

    2. Fig 2: View Of Cowl Vent Screen
    GM899985Courtesy of GENERAL MOTORS CORP.
  2. Position the air inlet grille panel to the vehicle.
  3. Connect the washer fluid hose.
  4. Install the push pin fasteners to the air inlet grille panel.
  5. Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
    6. Fig 3: View Of Hood Rear Seal
    GM872488Courtesy of GENERAL MOTORS CORP.
  6. Install the hood rear seal to the air inlet grille panel and press it into position.
