Radio Rear Compartment Speaker Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

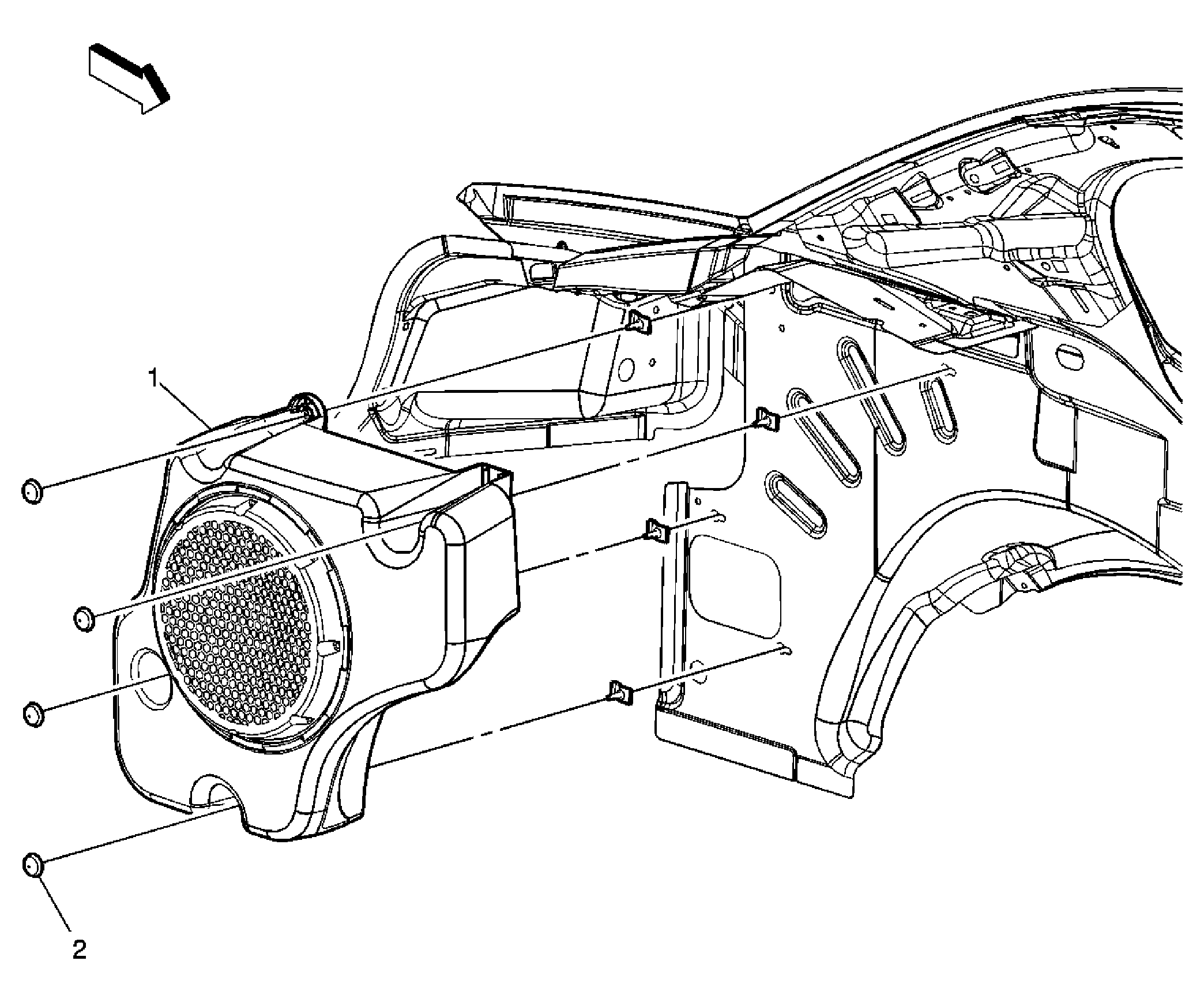

Fig 1: View Of Speaker - Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Speaker Assembly Tip: Disconnect the electrical connectors.
2	Rear Compartment Speaker Assembly Nut CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
