Ignition Lock Cylinder Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

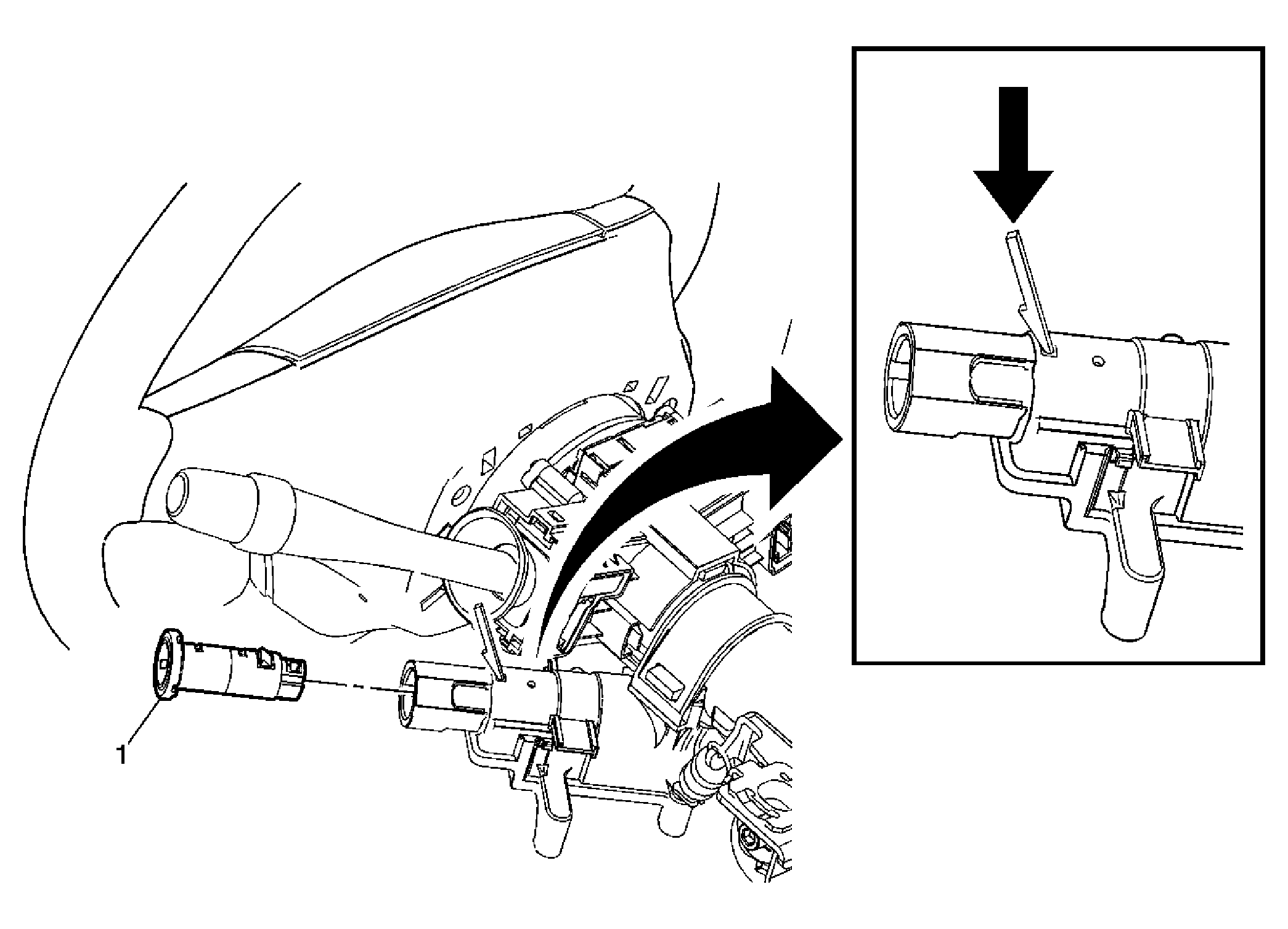

Fig 1: Identifying Ignition Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Ignition Lock Cylinder Procedure Turn the ignition lock cylinder to the RUN position. Insert a pick-type tool into the proper hole on the ignition lock cylinder case and press the lock tab on the ignition lock cylinder down. Pull the ignition lock cylinder out of the ignition lock cylinder case. If installing a new ignition lock cylinder then refer to Key and Lock Cylinder Coding (1st Design, Ortech) or Key and Lock Cylinder Coding (2nd Design, Strattec) or Key and Lock Cylinder Coding (3rd Design) .

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Ignition Lock Cylinder

Procedure

Turn the ignition lock cylinder to the RUN position.
Insert a pick-type tool into the proper hole on the ignition lock cylinder case and press the lock tab on the ignition lock cylinder down.
Pull the ignition lock cylinder out of the ignition lock cylinder case.
If installing a new ignition lock cylinder then refer to Key and Lock Cylinder Coding (1st Design, Ortech) or Key and Lock Cylinder Coding (2nd Design, Strattec) or Key and Lock Cylinder Coding (3rd Design) .
