Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

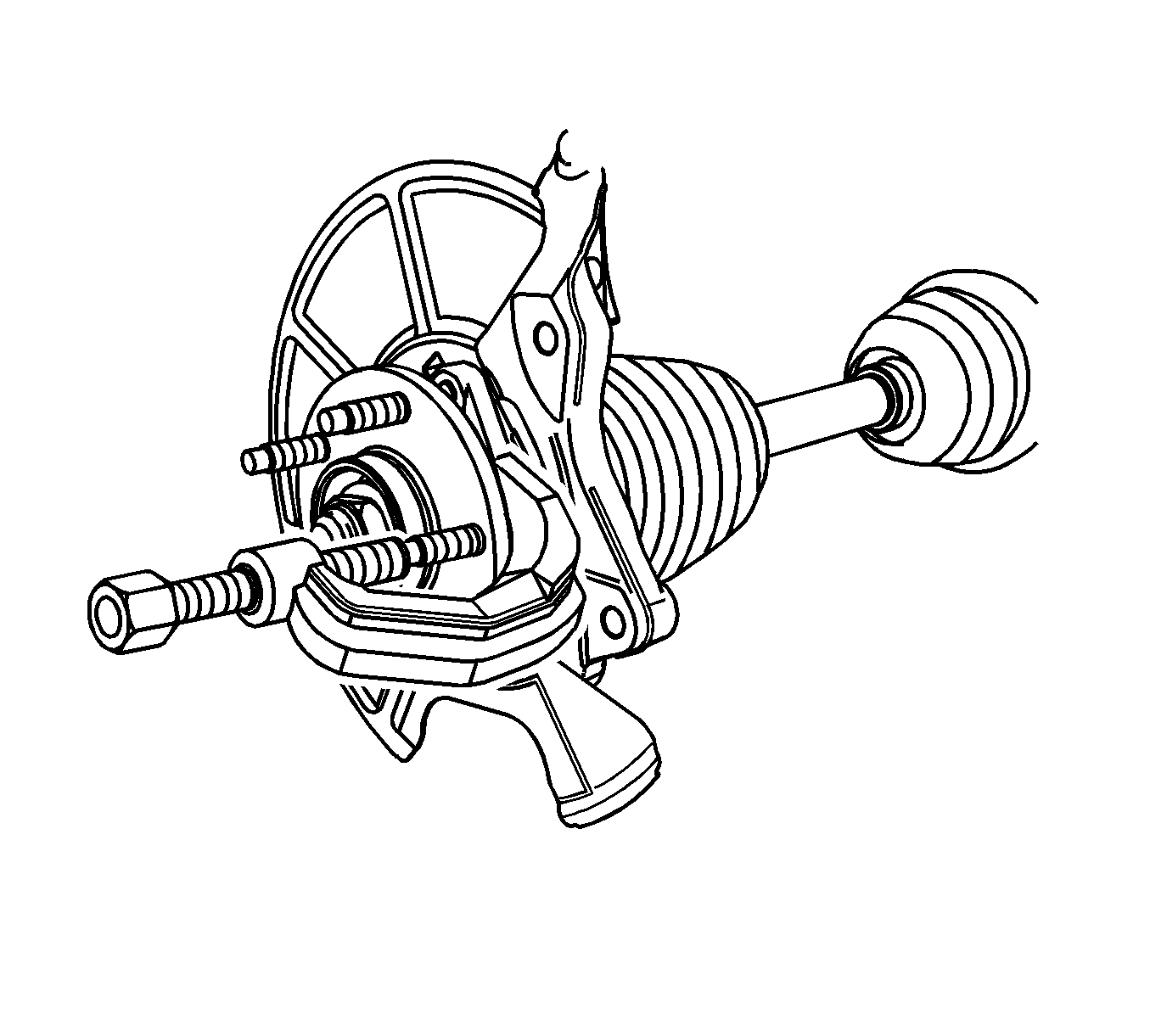

    Fig 1: Removing Wheel Stud - 5-Stud Pattern
    GM1233046Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Without disconnecting the hydraulic brake flex hose, remove and support the brake caliper and bracket as an assembly, and remove the brake rotor. Refer to Front Brake Rotor Replacement (With RPO LNF) or Front Brake Rotor Replacement (Without RPO LNF) .
  4. Rotate the bearing hub to a position where the least amount of interference between the stud and the steering knuckle exists.
  5. Using the J 43631  , release the wheel stud from the bearing hub and discard the stud.
